SMP Male Full Detent RF Connector – Stub Terminal, Thread-In, Solder

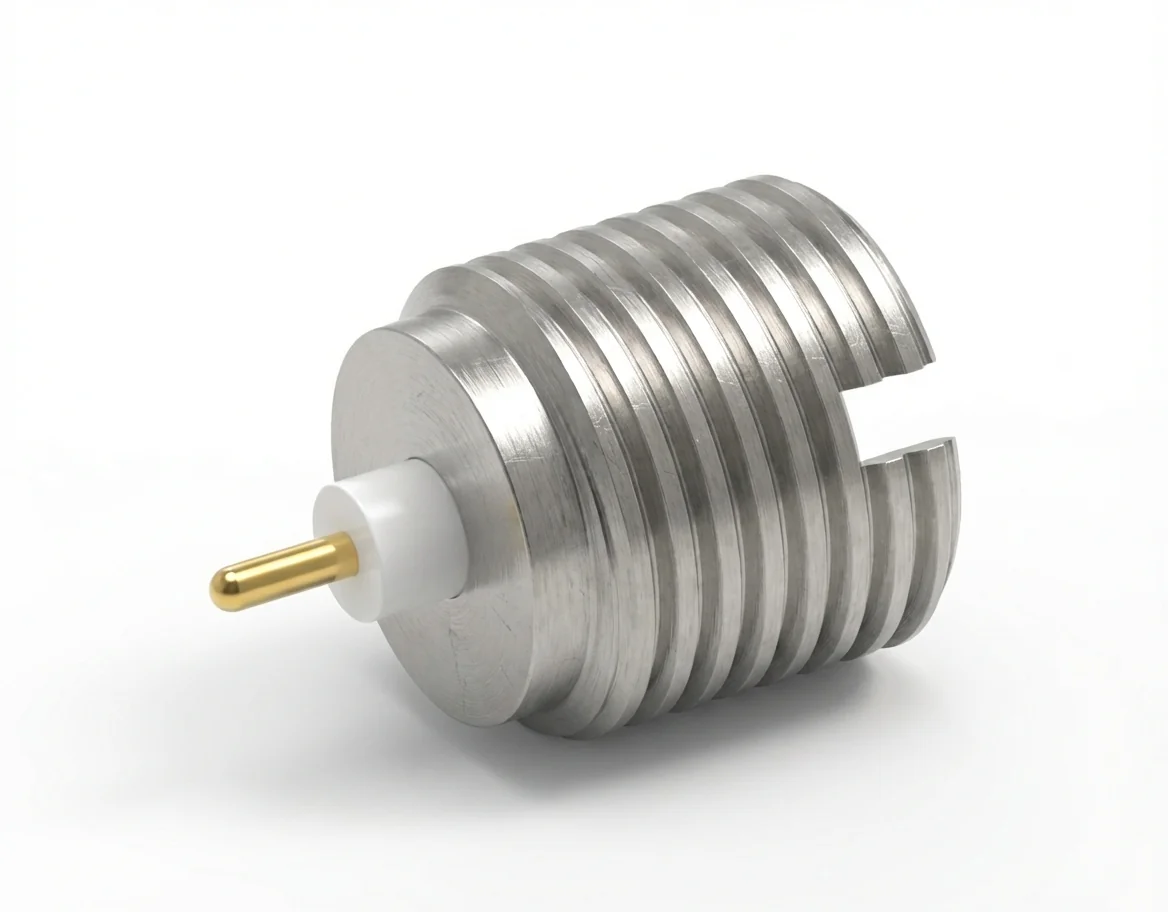

SMP Male Full Detent RF Connector – Stub Terminal, Thread-In, Solder, Model SMP-JYD1-F

The SMP male full detent RF connector – stub terminal, thread-in, solder configuration – is designed for rugged, high-frequency systems where strong mechanical retention and superior electrical consistency are required. Operating from DC to 40 GHz at 50 Ω impedance, this SMP connector delivers secure engagement and excellent repeatability in harsh vibration environments.

High-Reliability Electrical Performance

With VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the SMP male full detent connector ensures minimal reflection, tight impedance control, and stable phase performance across a wide frequency range.

Material Integrity and Environmental Compliance

Made from stainless steel with gold-plated beryllium copper contacts, the SMP stub terminal connector ensures long-term conductivity and mechanical strength. Fully REACH and RoHS compliant, it withstands temperatures from −55 °C to +165 °C with high durability.

Applications in High-Vibration Systems

The full detent interface provides secure locking within stub terminal RF assemblies used in aerospace, military radar, and high-density test platforms requiring firm coupling under motion and vibration.

Custom SMP Connector Solutions

Mechanc designs and produces a complete range of SMP RF connectors—smooth, limited, and full detent—engineered for specific mechanical and electrical performance needs. Explore our RF Connector Catalog for detailed options.
