| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

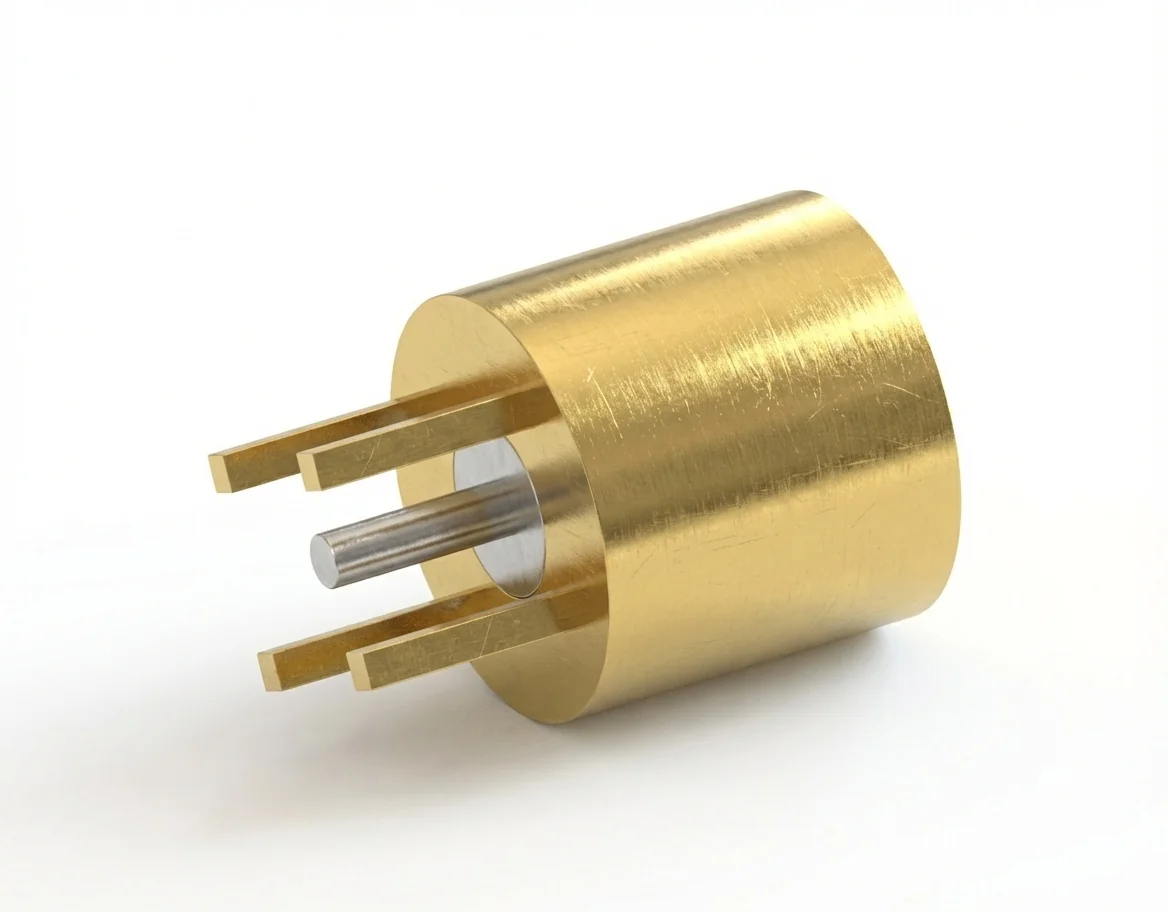

The SMP male limited detent PCB coaxial connector – thru-hole, gold-plated, solder configuration – provides secure yet easily detachable RF connections for compact board-level designs. Operating at 50 Ω impedance up to 40 GHz, this SMP connector ensures accurate signal transfer and long-term reliability in modular systems.
With VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the SMP male limited detent connector maintains consistent impedance matching and low return loss across high-frequency ranges, ideal for microwave testing and signal distribution modules.
Fabricated from stainless steel with gold-plated beryllium copper contacts, the SMP PCB connector ensures optimal conductivity and long-term mechanical strength. Fully REACH and RoHS compliant, it maintains performance under temperature extremes from −55 °C to +165 °C.
The limited detent interface provides controlled engagement within PCB mount RF connectors used in instrumentation amplifiers, phased-array modules, and compact test systems.
Mechanc offers configurable SMP connectors in smooth, limited, and full detent versions for different mechanical tolerances and interface retention levels. Browse our RF Connector Catalog for detailed specifications.
