SSMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 8.3mm Hole Spacing, 0.23mm Pin Diameter

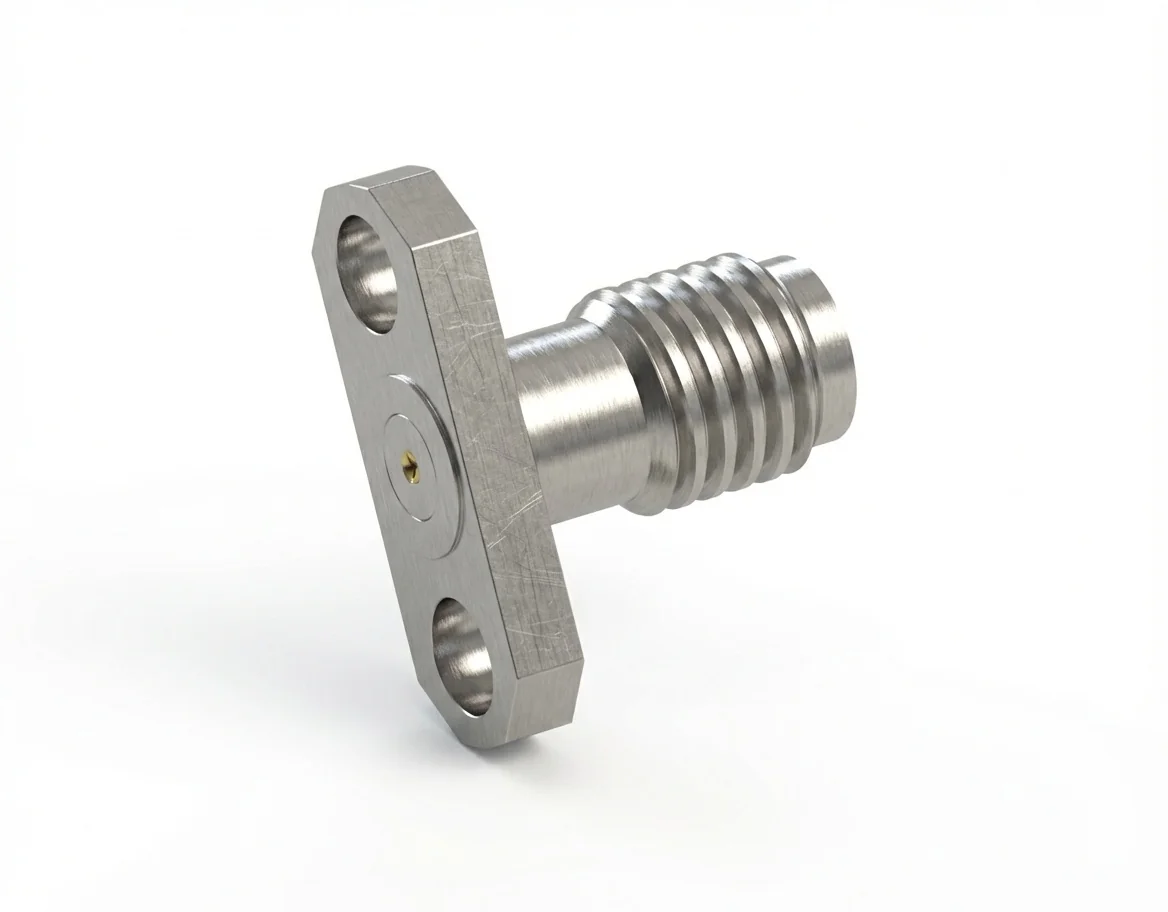

SSMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SSMA-KFD7

The SSMA female 2-hole flange mount RF connector with a 0.23 mm pin and 8.3 mm hole spacing delivers high-frequency precision for compact RF modules. Supporting 50 Ω systems up to 36 GHz, this field-replaceable connector ensures low-loss, repeatable performance for test and communication platforms.

Exceptional Signal Accuracy

With VSWR ≤ 1.25 and insertion loss ≤ 0.06 √F(GHz) dB, the SSMA female 2-hole flange connector maintains impedance stability and phase integrity in narrow-band and broadband applications.

Compact, Precision Build

Its 8.3 mm two-hole flange design allows efficient integration in 2-hole flange RF connectors used in miniaturized analyzers, oscillators, and calibration frames.

Durable Materials and Compliance

Built from stainless steel and gold-plated BeCu, the SSMA female connector offers mechanical endurance and corrosion resistance. Fully REACH and RoHS compliant, it delivers stability across −55 °C to +165 °C.

Engineering Flexibility

Mechanc provides precision SSMA RF connectors with customizable pin diameters and flange geometries. Explore compatible models in our RF Connector Catalog.
