SSMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 8.3mm Hole Spacing, 0.3mm Pin Diameter
| Quantity | Price |
| 1 - 99 | 23,00 $ |
| 100 - 199 | 22,54 $ |
| 200 - 499 | 22,31 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

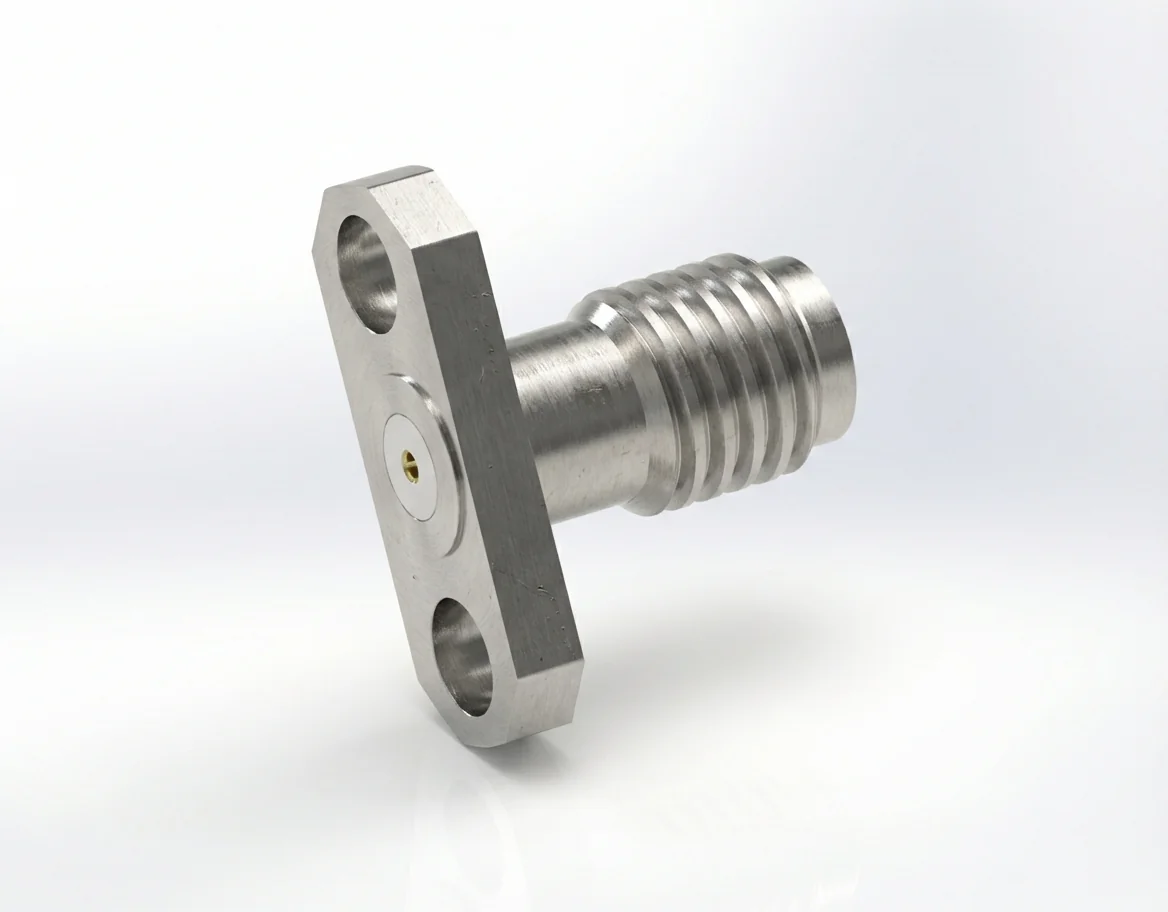

SSMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SSMA-KFD8
The SSMA female 2-hole flange mount RF connector with a 0.3 mm pin and 8.3 mm hole spacing ensures accurate impedance control and mechanical reliability. Designed for 50 Ω operation from DC to 36 GHz, this field-replaceable connector is built for compact, high-precision RF systems.
Electrical Consistency and Low VSWR
Featuring VSWR ≤ 1.25 and insertion loss ≤ 0.06 √F(GHz) dB, the SSMA female connector supports stable broadband transmission with minimal reflection in test or monitoring setups.
Compact Mechanical Form Factor
The 8.3 mm flange pattern is optimized for 2-hole flange mount assemblies in space-limited analyzers, radar modules, and RF verification units.
Material Quality and Reliability
Fabricated from stainless steel with gold-plated BeCu contacts, the connector offers excellent mechanical rigidity and conductivity. It is REACH and RoHS compliant and operates within −55 °C to +165 °C.
Customization and Integration
Mechanc’s SSMA RF connector series supports design customization for different flange layouts and pin diameters. View the complete collection in our RF Connector Catalog.
