| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

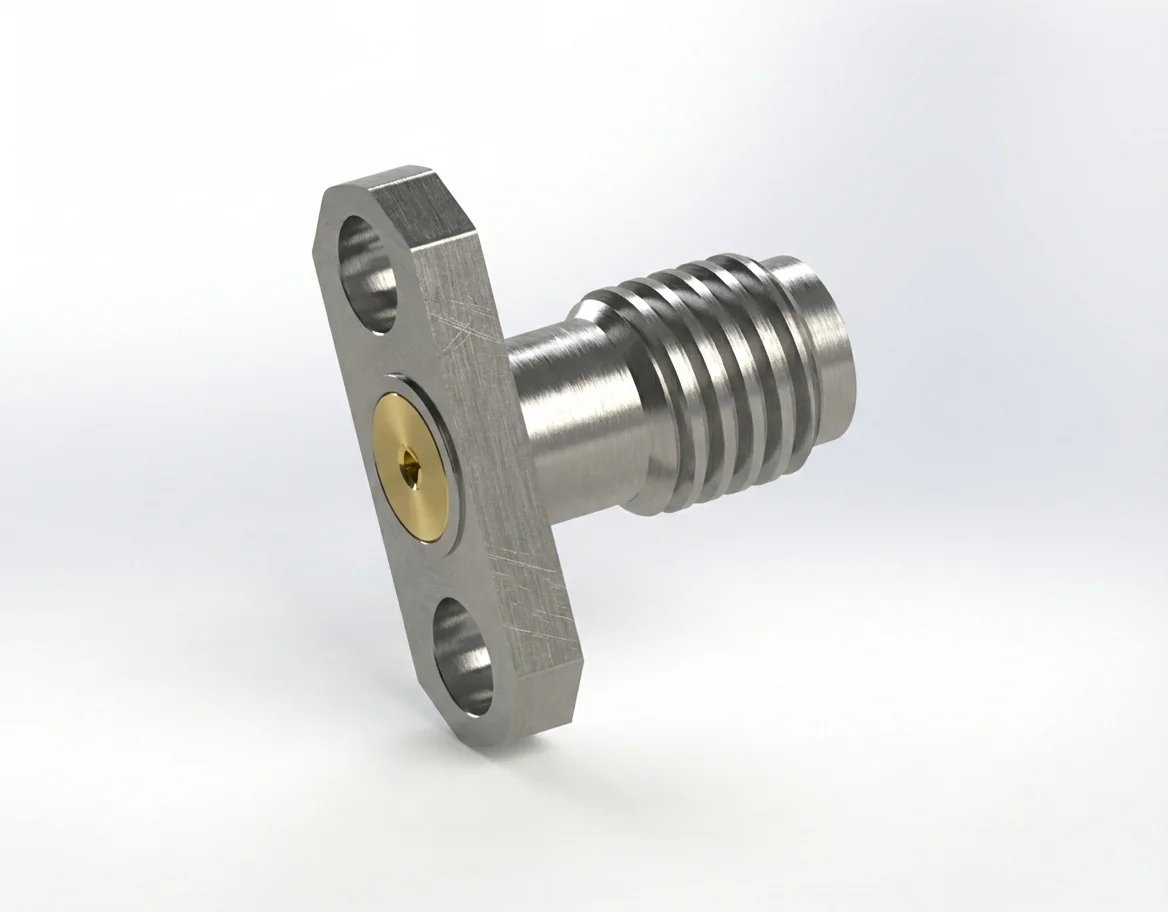

The SSMA female 2-hole flange mount RF connector with a 0.51 mm pin and 8.3 mm hole spacing is engineered for high-strength, precision coupling in compact microwave systems. Operating from DC to 36 GHz at 50 Ω, this field-replaceable connector guarantees consistent electrical alignment and mechanical reliability across demanding RF environments.
Delivering VSWR ≤ 1.25 and insertion loss ≤ 0.06 √F(GHz) dB, the SSMA female 2-hole flange connector ensures low reflection and accurate impedance matching for broadband measurement setups.
Made from stainless steel and gold-plated beryllium copper, the SSMA female connector provides superior contact integrity, corrosion protection, and long-term electrical stability. Fully REACH and RoHS compliant, it maintains reliable operation between −55 °C and +165 °C.
The 8.3 mm 2-hole flange layout enables installation in 2-hole flange mount RF connectors used in calibration tools, RF analyzers, and portable signal testing systems.
Mechanc offers customizable SSMA RF connectors with various pin diameters and flange geometries to suit precision testing and modular assembly requirements. Explore compatible options in our RF Connector Catalog.
