| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

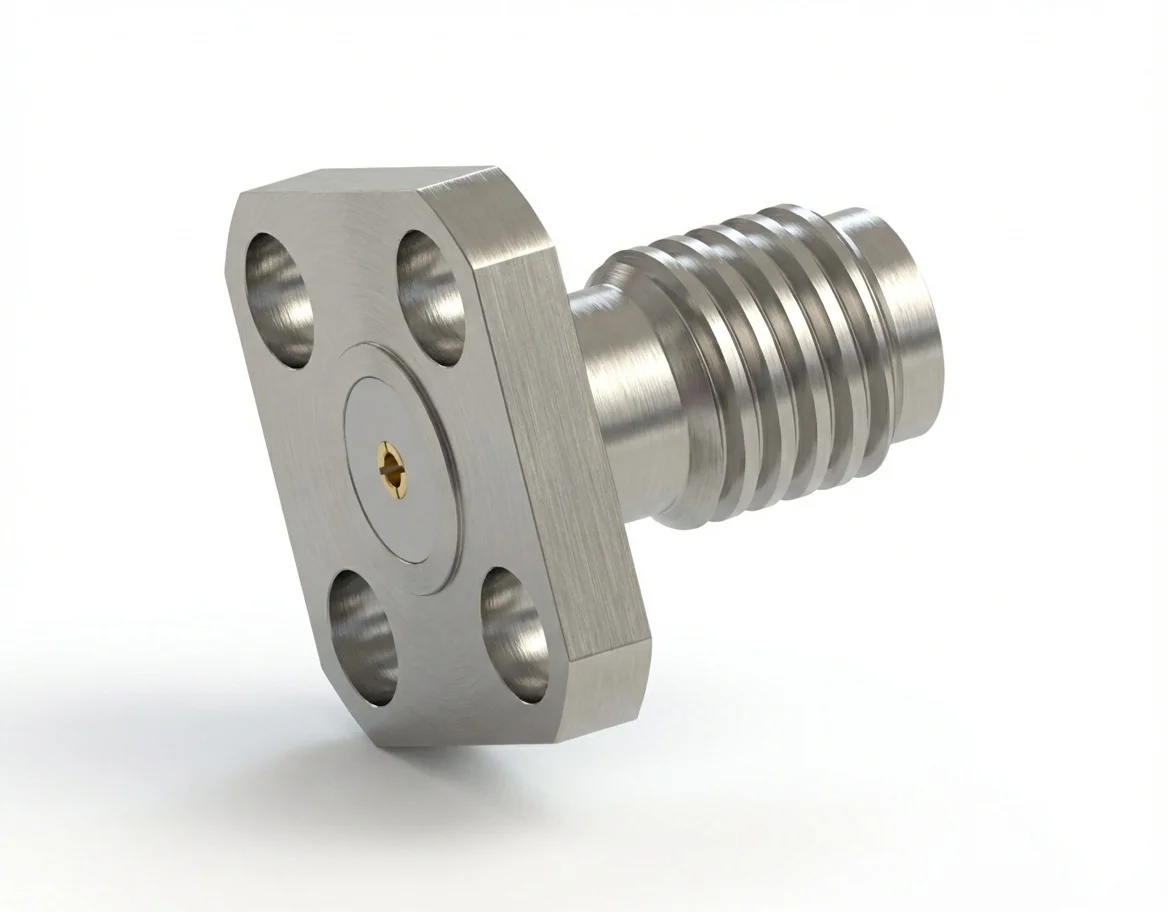

This SSMA female 4-hole flange RF connector combines a 0.46 mm pin with 5.9 mm hole spacing for higher contact area and rugged coupling. It supports 50 Ω systems from DC to 36 GHz and features a field-replaceable body for simplified upkeep.
Expect VSWR ≤ 1.25 and insertion loss ≤ 0.06 √F(GHz) dB to protect dynamic range and measurement repeatability in microwave chains.
The 5.9 mm pattern maximizes port density while preserving mechanical rigidity—drop-in compatible with our 4-hole flange mount ecosystem.
Pick the 0.46 mm pin for mid-power paths, amplifier characterization, and ruggedized test sets where contact durability matters. Compare alternatives in our SSMA portfolio.
Stainless shells with gold-plated BeCu contacts resist wear and corrosion over many mate/de-mate cycles; find compatible accessories in the RF Connector Catalog.
