SSMP Male Smooth Bore Coaxial Connector – Stub Terminal, Thread-In, Solder

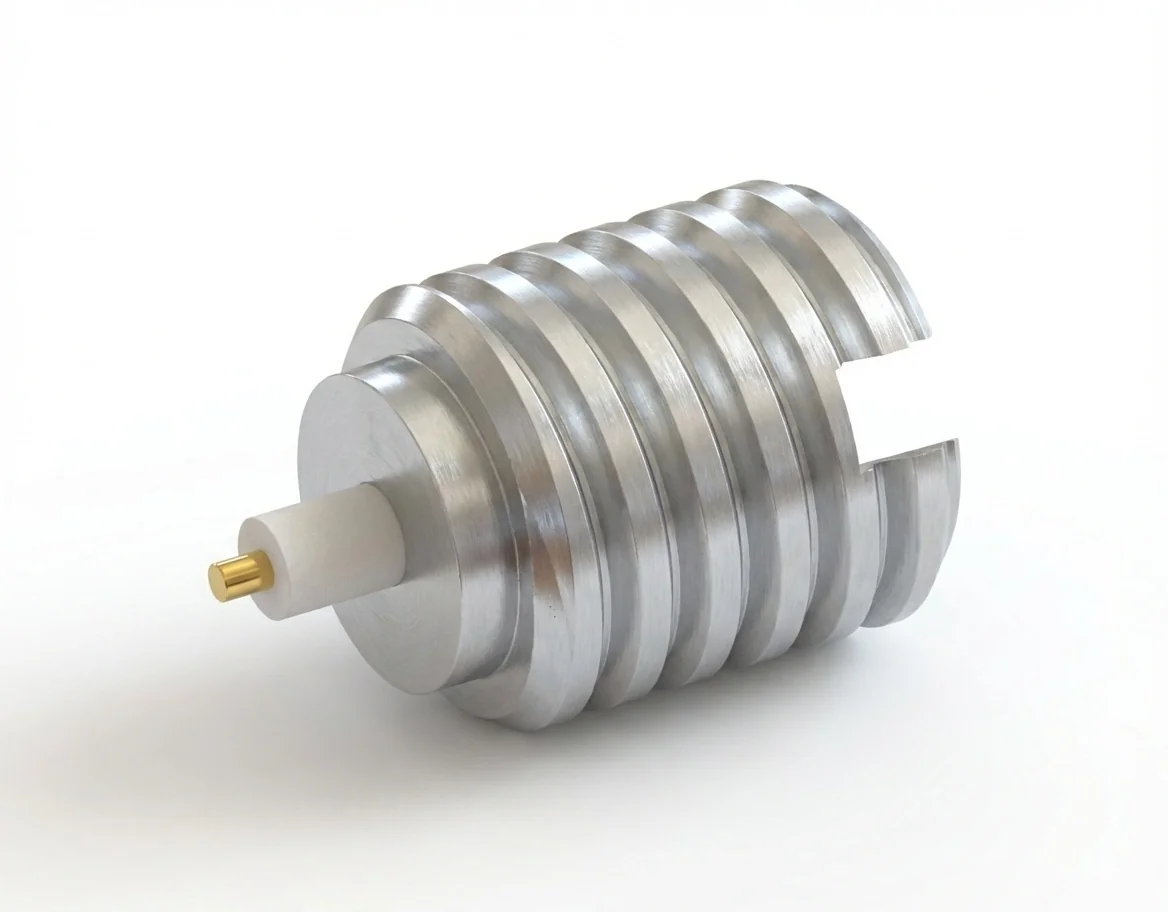

SSMP Male Smooth Bore Coaxial Connector – Stub Terminal, Thread-In, Solder, Model SSMP-JYD1-S

The SSMP male smooth bore coaxial connector with stub terminal, thread-in, and solder configuration provides compact, high-frequency performance up to 50 GHz. Designed with a 50 Ω impedance, this connector ensures stable, low-loss signal transmission in miniaturized microwave modules and precision RF assemblies.

Electrical and Mechanical Stability

Delivering VSWR ≤ 1.3 and insertion loss ≤ 0.06 √F(GHz) dB, the SSMP male smooth bore connector guarantees accurate impedance matching and minimal reflection across broadband frequencies. The smooth bore interface ensures quick, repeatable connections suitable for dense RF system architectures.

Durability and Compliance

Manufactured from high-grade stainless steel with gold-plated beryllium copper contacts, the SSMP coaxial connector combines mechanical strength, electrical precision, and corrosion resistance. Fully REACH and RoHS compliant, it performs reliably across temperatures from −55 °C to +165 °C.

Applications in High-Density RF Systems

This connector is widely used in SSMP connector assemblies for aerospace modules, radar front ends, and millimeter-wave transceivers requiring compact interfaces and high-frequency capability.

Precision Engineering Options

Mechanc offers SSMP RF connectors in smooth and full detent variations, customized for space-limited, high-performance designs. Explore the RF Connector Catalog for compatible assemblies and precision-grade components.
