SSMP Male Smooth Bore PCB Coaxial Connector – End Launch, Gold Plated, Solder

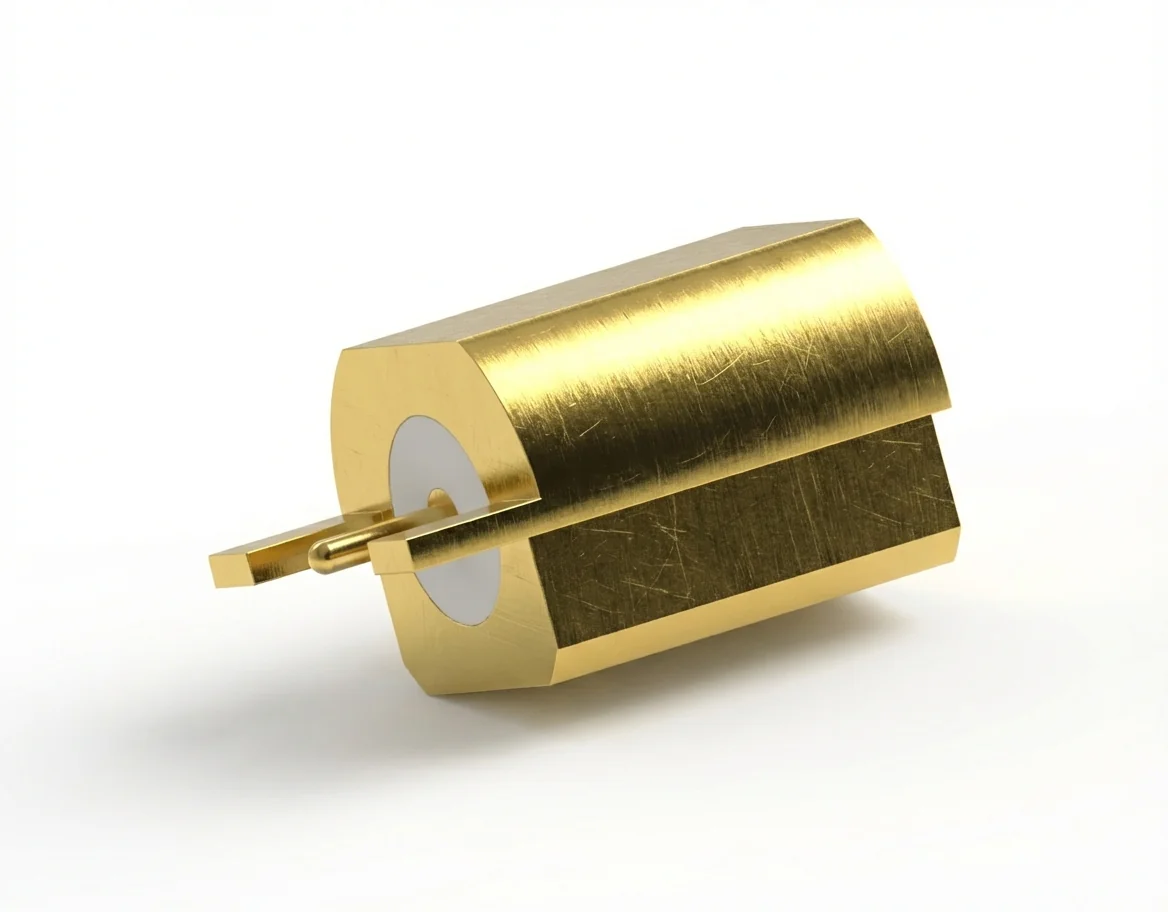

SSMP Male Smooth Bore PCB Coaxial Connector – End Launch, Gold Plated, Solder, Model SSMP-JHD1-S

The SSMP male smooth bore PCB coaxial connector with end launch and gold-plated solder design offers compact, high-frequency performance up to 50 GHz. With a 50 Ω impedance, this precision-engineered SSMP connector is optimized for high-density PCB layouts and microwave test assemblies requiring minimal signal loss.

Superior Electrical Performance

Delivering VSWR ≤ 1.3 and insertion loss ≤ 0.06 √F(GHz) dB, the SSMP male smooth bore connector provides low reflection, consistent impedance control, and repeatable electrical performance for broadband applications.

Gold-Plated Design and Durability

Constructed from stainless steel with gold-plated beryllium copper contacts, the SSMP coaxial connector offers outstanding conductivity, corrosion resistance, and solderability. Fully REACH and RoHS compliant, it ensures long-lasting reliability in variable temperature environments from −55 °C to +165 °C.

Applications in Precision PCB Systems

The end-launch geometry allows direct edge-mount integration within SSMP connector assemblies used in radar receivers, miniaturized transmitters, and precision test PCBs where size and alignment accuracy are critical.

Custom SSMP PCB Connector Solutions

Mechanc manufactures SSMP connectors in multiple interface types and plating finishes for customized RF board layouts. Explore the RF Connector Catalog to find compatible high-frequency designs.
