3.5mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.9mm Pin Diameter

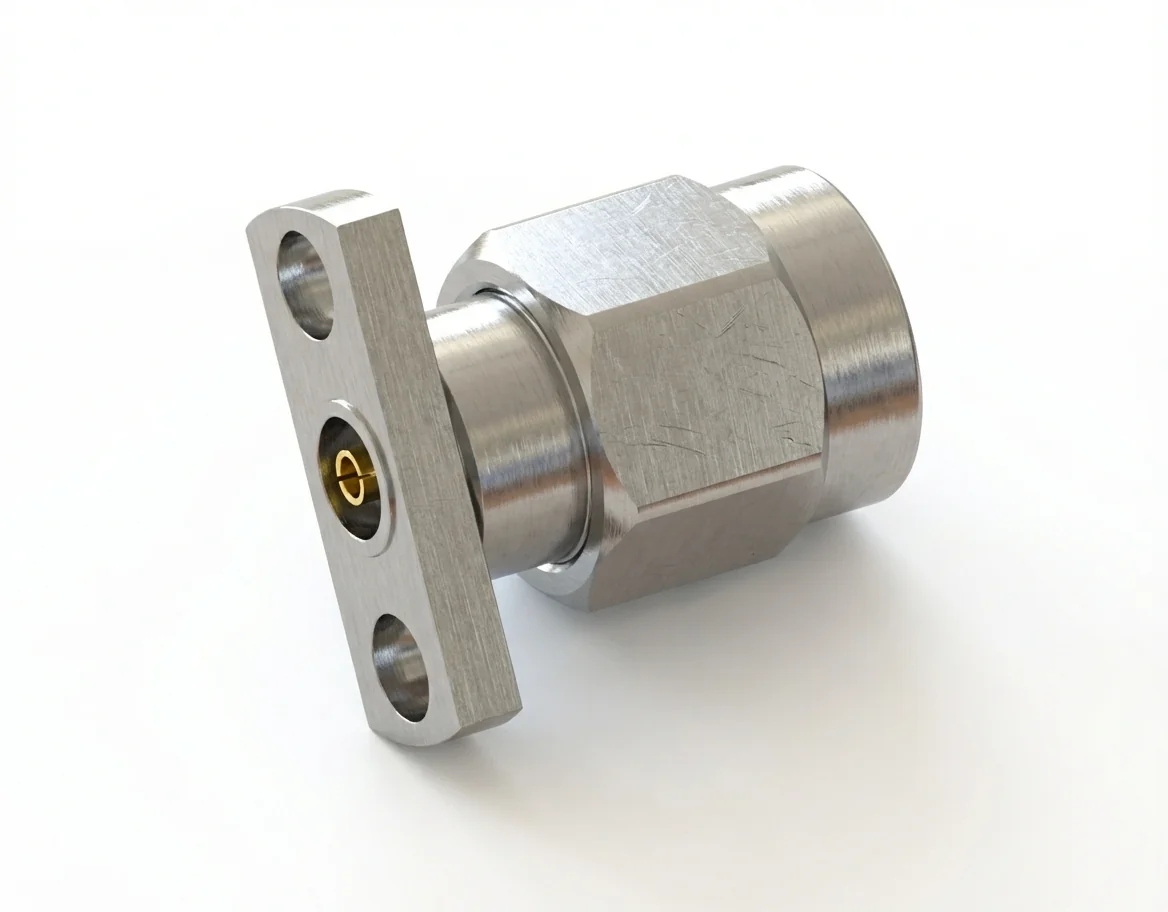

3.5mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD36

The 3.5 mm male 2-hole flange mount RF connector with a 0.9 mm pin and 12.7 mm hole spacing provides exceptional broadband performance for RF calibration systems, test modules, and high-precision analyzers. Its field-replaceable design allows efficient servicing and maintains repeatable impedance alignment throughout multiple connection cycles.

Electrical Performance and Frequency Range

Operating at 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5-JFD36 connector ensures low reflection and stable transmission from DC up to 26.5 GHz. Ideal for metrology-grade instrumentation and broadband calibration setups. Discover similar solutions in our 3.5 mm connector series.

Construction Quality and Environmental Compliance

Built from passivated stainless steel and fitted with gold-plated beryllium copper contacts, this connector guarantees superior corrosion resistance, conductivity, and mechanical endurance. Each component is REACH and RoHS compliant, ensuring global conformity and long service life. See related models in our flange-mount connector collection.

Mechanical Design and Mounting Integration

The 2-hole flange mount geometry (12.7 mm spacing) ensures rigid mounting and precise alignment for analyzer housings and compact RF test assemblies. Its durable structure supports repeatable mating and phase stability. Browse the RF connector catalog for compatible field-replaceable components.

Matching Female Connector

Use with the complementary 3.5 mm female 2-hole flange mount RF connector – Model 3.5-KFD36 to form a precision-matched pair ensuring minimal insertion loss and repeatable calibration accuracy in broadband test systems.
