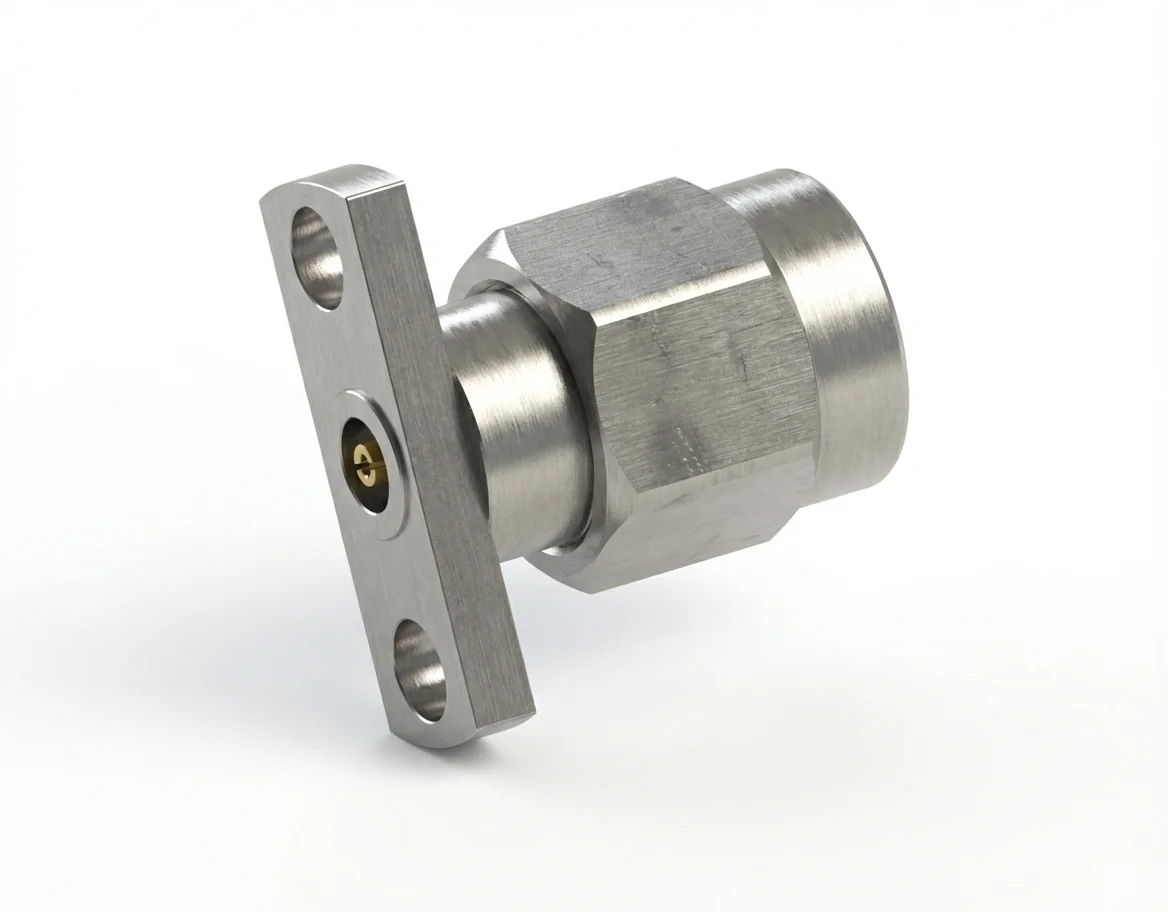

2.92mm 公头 2孔法兰安装射频连接器 – 现场可更换，孔距 10.2mm，针径 0.51mm
Part No.
2.92-JFD25
Also:
1.0mm 公头
In Stock
Lead time: 3–5 days (standard) · Custom: on request
2.92mmMaleStraight2 Hole Flange
Quantity
Electrical & Mechanical Specifications
| Part Number | 2.92-JFD25 |
|---|---|
| Series | 2.92mm |
| Gender | Male |
| Body Style | Straight |
| Mount Method | 2 Hole Flange |
| Attachment Method | Field Replaceable |
| Termination Type | Field Replaceable |
| Frequency Max | 40 GHz |
| Impedance | 50 Ω |
| Max Operating Temperature | +165°C |
| Connector 1 | 1.0mm 公头 |
| Connector 2 | 1.0mm 公头 |
| Insertion Loss | <0.06 √F(GHz) dB |
Product Description
2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD25
The 2.92 mm male 2-hole flange mount RF connector with a 0.51 mm pin and 10.2 mm hole spacing is optimized for high-power RF applications up to 40 GHz. This field-replaceable connector ensures excellent mechanical fit and consistent electrical stability.
High-Power Precision and Stability
Featuring VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector provides low-loss signal transfer and precise impedance control.
Construction and Compliance
Stainless steel and gold-plated beryllium copper materials make the 2.92 mm male flange connector fully REACH and RoHS compliant for global use.
Applications and Integration
Used in calibration systems and 2-hole flange mount assemblies where durable broadband stability is essential.
Equivalent Female Connector
Pair with the 2.92 mm female 2-hole flange mount RF connector – Model 2.92-KFD25. Find more in our 2.92 mm RF connector series inside the RF Connector Catalog.
