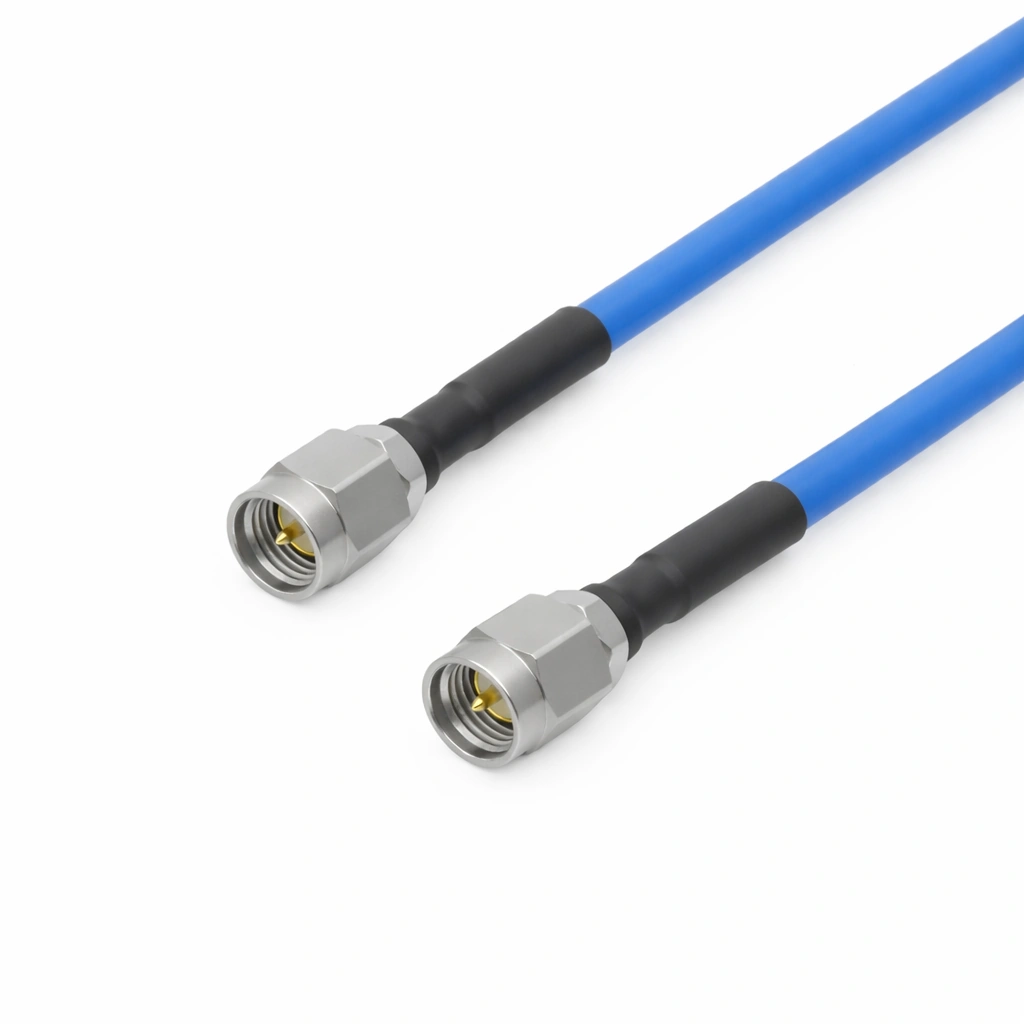

The SMA Male to SMA Male High-Performance RF Test & Measurement Cable Assembly — model TCAS-SMSM-1M — is a robust, precision-built RF test cable designed for accurate and repeatable measurements up to 6 GHz. This 1 meter assembly is manufactured using Mechanc’s CFT780MH6 coaxial cable, a durable phase-stable variant of the CFT780M Phase-Stable 18 GHz Ultra-Flexible Precision Test Coaxial Cable. Each end is fitted with high-quality SMA male connectors (reference SMA-JCFT780MH6-1), ensuring a secure and low-reflection interface for RF test equipment.

Stable RF Performance up to 6 GHz

The TCAS-SMSM-1M is optimized for daily RF testing, supporting a DC–6 GHz bandwidth and offering consistent signal integrity. With a 1.15 typical VSWR and a very low 0.6 dB typical insertion loss over 1 meter, the assembly provides clean, reliable transmission ideal for S-parameter verification, return-loss measurements, time-domain checks, and general-purpose RF lab testing.

Rugged CFT780MH6 Construction for Repeatable Measurements

The CFT780MH6 coaxial cable is engineered for stability under mechanical stress, temperature variation, and frequent repositioning. It delivers ±3° mechanical phase stability and ±0.05 dB amplitude stability, ensuring repeatability in long-term test routines. A robust 7.8 mm outer diameter, supportive 80 mm minimum bend radius, and outstanding 20,000-cycle bend life make it exceptionally reliable for high-duty laboratory or production floor environments. An 82% velocity of propagation supports accurate time-domain and phase-sensitive measurements across a wide –55 °C to +165 °C operating range.

Precision SMA Interfaces for Reliable Connections

Each end of the assembly features precision SMA-JCFT780MH6-1 connectors designed for low reflection and excellent mechanical repeatability. These SMA interfaces make the TCAS-SMSM-1M suitable for VNAs, signal generators, spectrum analyzers, test fixtures, and automated RF platforms. For additional SMA-based assemblies, explore the complete SMA RF Cable Assemblies series.

Qualified for Professional RF & Microwave Test Systems

As part of Mechanc’s TC-series offerings, each TCAS-SMSM-1M assembly is rigorously tested for VSWR, insertion loss, phase stability, and mechanical performance. It is fully compliant with REACH and RoHS standards, ensuring long-term reliability for precision RF and microwave laboratory environments.
