Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

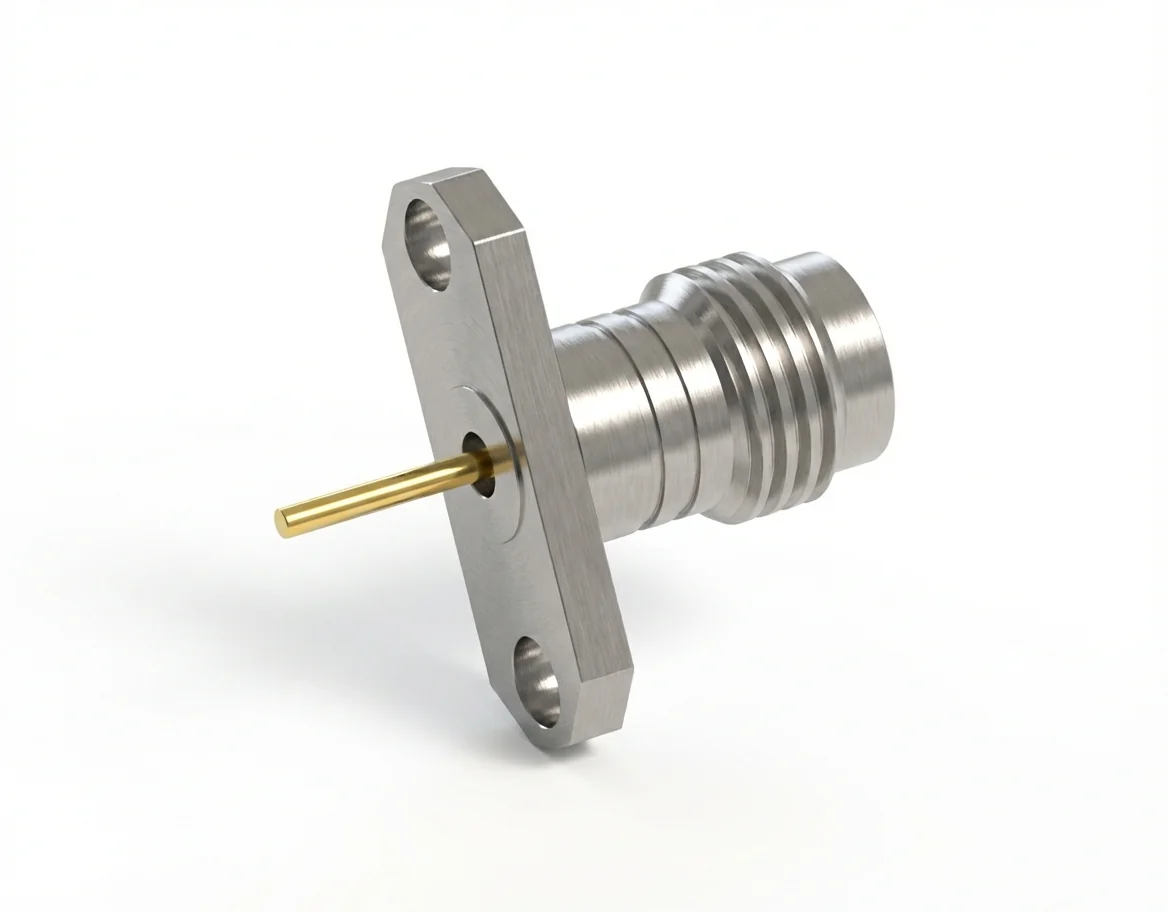

The 1.85mm female 2-hole flange mount RF connector with 12.22 mm hole spacing and an 0.8 mm pin diameter provides exceptional precision and durability for ultra-high-frequency test and measurement systems. Operating from DC to 67 GHz with 50 Ω impedance, the 1.85-KFD14 delivers industry-leading performance for demanding RF and microwave applications.
The 1.85-KFD14 RF connector achieves VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, ensuring excellent return loss and signal integrity even in high-density assemblies. The precision interface design guarantees stable impedance matching for vector network analyzers, radar systems, and advanced RF testing environments.
Built from passivated stainless steel with gold-plated beryllium copper contacts, the 1.85mm female flange mount connector combines exceptional mechanical strength and electrical conductivity. Fully RoHS and REACH compliant, it provides long-lasting stability in both laboratory and field conditions.
The 2-hole flange mount configuration allows precise alignment and secure installation into modular measurement systems, frequency extension modules, and high-frequency signal analyzers. Its solder attachment provides mechanical rigidity and excellent thermal conductivity during operation.
Discover Mechanc’s full selection of 1.85mm RF connectors designed for next-generation testing and high-frequency instrumentation. For additional high-performance solutions, visit our RF Connector Catalog and explore our range of female RF connectors.
