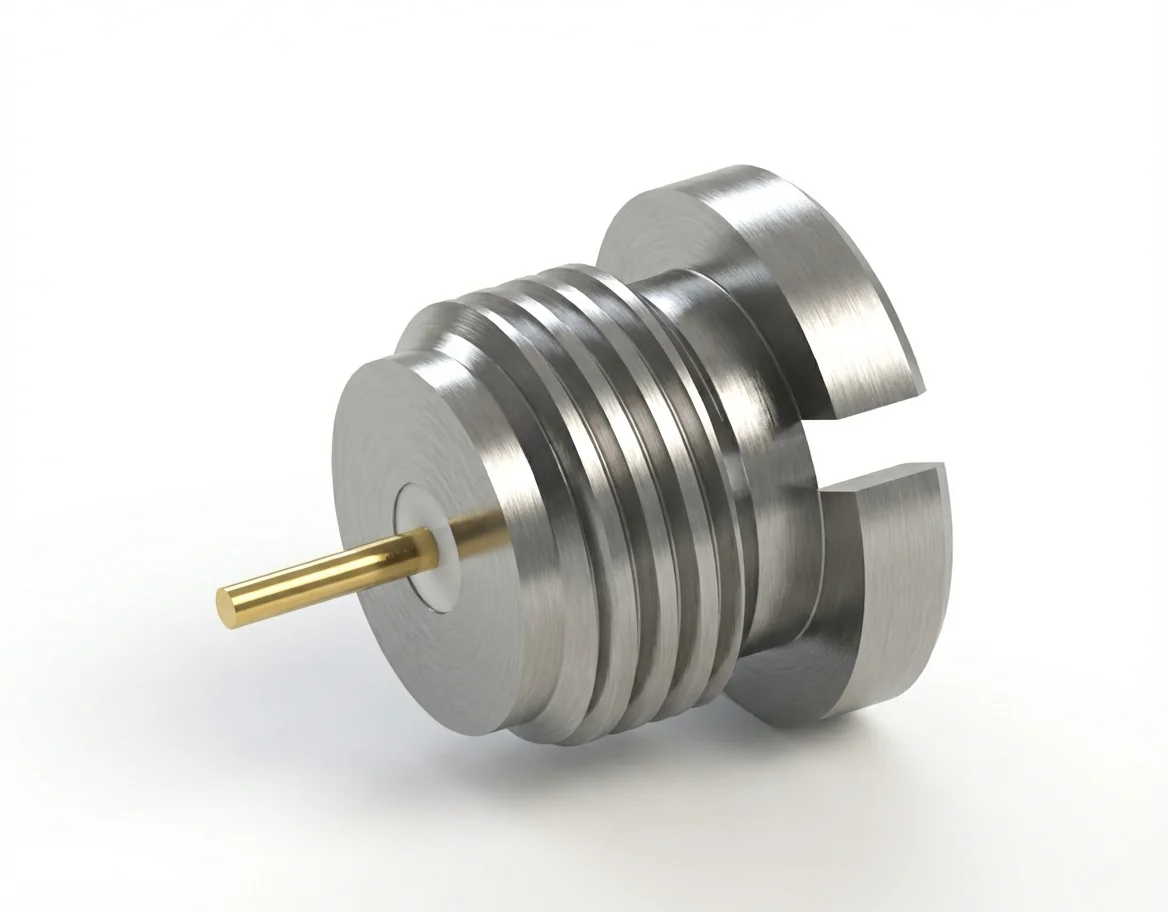

SMP Male Full Detent Coaxial Connector – Stub Terminal, 2.5mm Pin Diameter, Thread-In, Solder

SMP Male Full Detent Coaxial Connector – Stub Terminal, 2.5mm Pin Diameter, Thread-In, Solder, Model SMP-JYD2-F

The SMP male full detent coaxial connector – stub terminal, thread-in, solder attachment – offers maximum retention strength and superior electrical performance for high-vibration RF systems. Supporting 50 Ω impedance and operating from DC to 40 GHz, this SMP connector ensures long-term signal reliability in mission-critical microwave assemblies.

Exceptional RF Performance

Delivering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the SMP male full detent connector minimizes reflection and maintains stable phase characteristics across broadband frequencies, even under mechanical stress.

Material Integrity and Environmental Endurance

Fabricated from stainless steel with gold-plated beryllium copper contacts, the SMP stub terminal connector provides high conductivity and mechanical toughness. Fully REACH and RoHS compliant, it withstands temperature extremes between −55 °C and +165 °C.

Applications in Rugged RF Systems

The full detent locking mechanism ensures secure coupling in stub terminal connectors used for aerospace, defense radar, and vibration-prone RF platforms requiring dependable engagement strength.

Tailored SMP Connector Solutions

Mechanc develops advanced SMP RF connectors with customizable interface detents and mounting geometries. Explore our RF Connector Catalog for related high-frequency solutions.
