SMP Male Limited Detent PCB Coaxial Connector – Thru Hole, Square Body, Solder

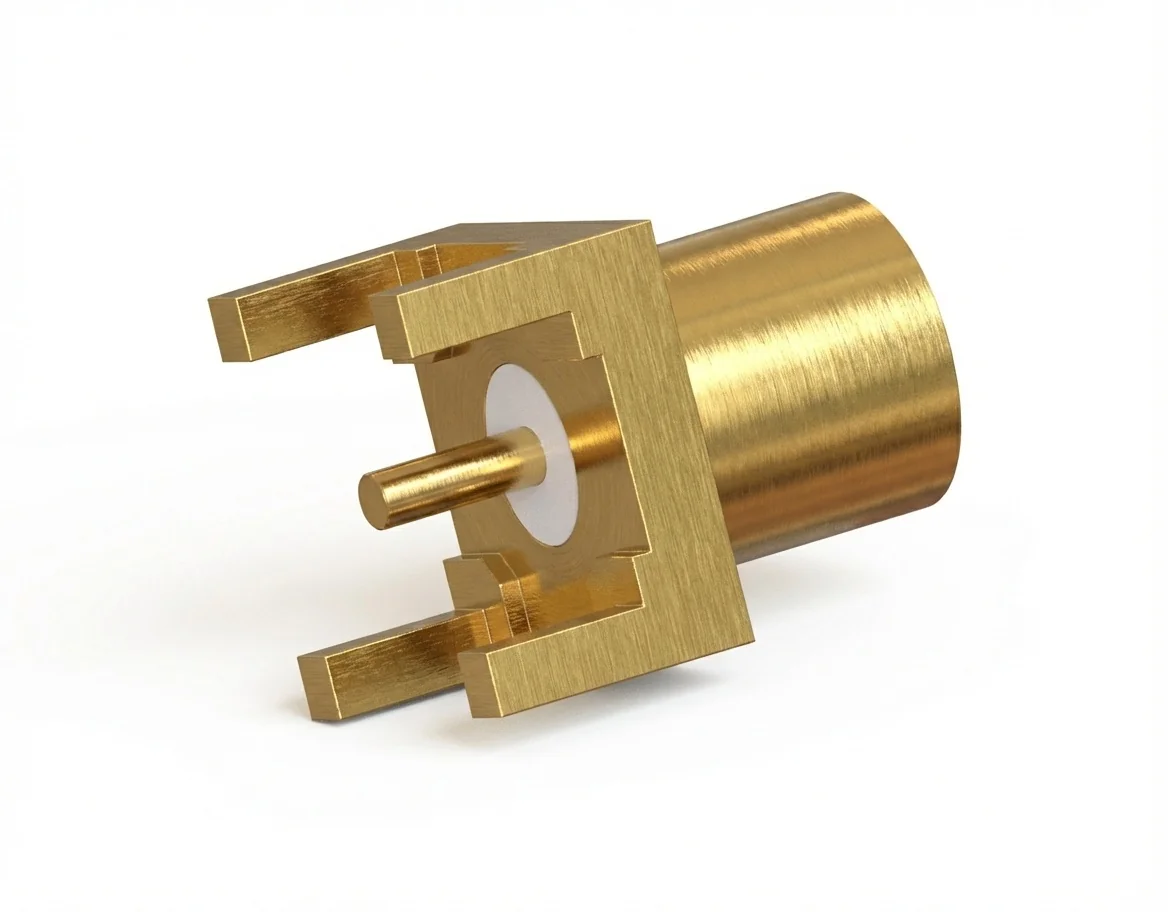

SMP Male Limited Detent PCB Coaxial Connector – Thru Hole, Square Body, Solder, Model SMP-JHD1-L

The SMP male limited detent PCB coaxial connector – thru-hole, square body, solder type – provides controlled retention and repeatable electrical performance for dense board-mounted RF systems. Operating from DC to 40 GHz at 50 Ω impedance, this SMP connector ensures optimal signal continuity and mechanical reliability.

High-Frequency Electrical Performance

Delivering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the SMP male limited detent connector provides consistent impedance matching and minimal reflection for accurate measurement and transmission.

Mechanical Strength and Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, the SMP PCB connector combines strong retention with stable conductivity. Fully REACH and RoHS compliant, it withstands temperature variations from −55 °C to +165 °C while maintaining mechanical precision.

Applications in Board-to-Board Interconnects

The square-body thru-hole design allows robust mounting in PCB mount RF connectors used in communication modules, radar instrumentation, and RF switchboards requiring frequent connection cycles.

Customized SMP Engineering Support

Mechanc manufactures SMP connectors in multiple detent strengths and form factors to fit various system requirements. Visit the RF Connector Catalog to discover compatible components for PCB integration.
