SMP Male Limited Detent RF Connector – Stub Terminal, Thread-In, Solder

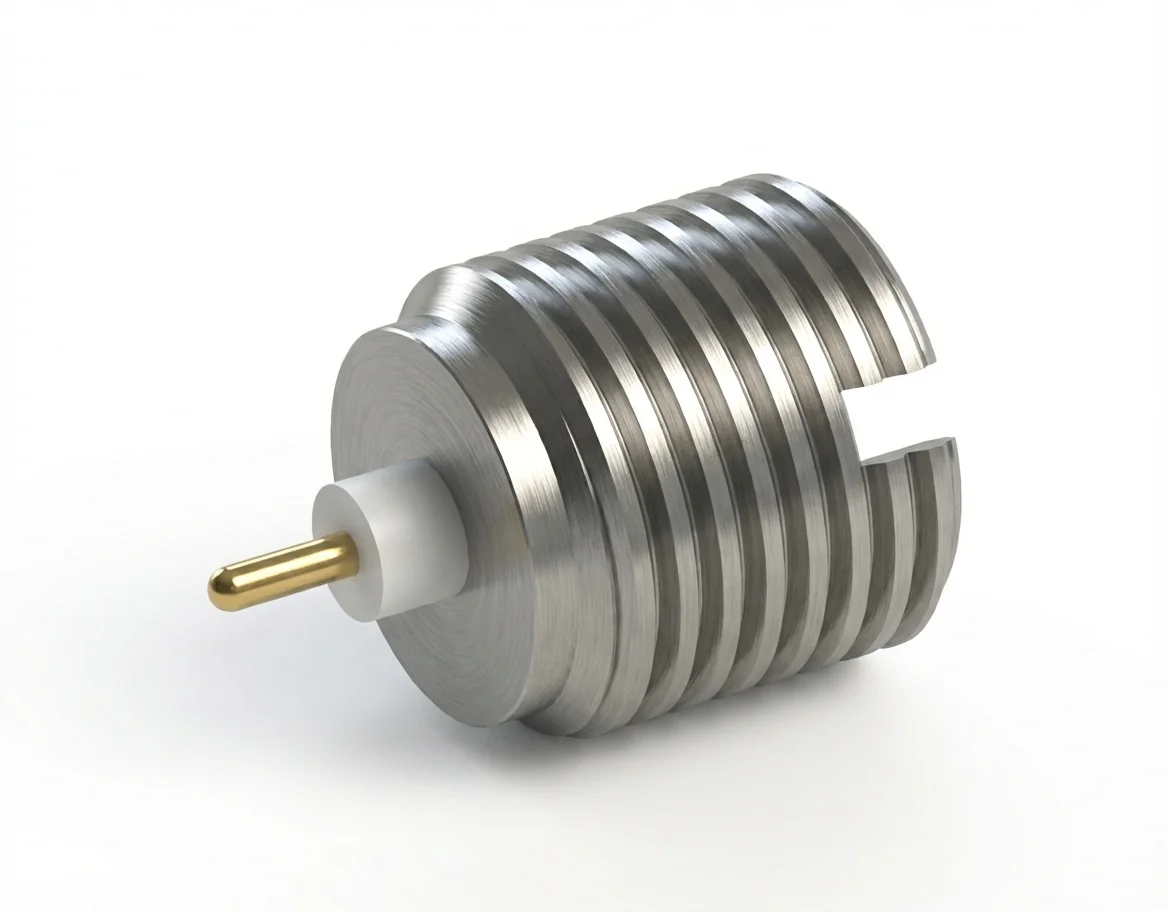

SMP Male Limited Detent RF Connector – Stub Terminal, Thread-In, Solder, Model SMP-JYD1-L

The SMP male limited detent RF connector – stub terminal, thread-in, solder configuration – delivers reliable electrical and mechanical performance in modular microwave assemblies. Supporting 50 Ω impedance and frequencies up to 40 GHz, this SMP connector ensures stable retention while allowing controlled engagement and disengagement for system maintenance.

Consistent Electrical Characteristics

Featuring VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the SMP male limited detent connector maintains low return loss and repeatable impedance control in dense RF interconnect applications.

Material Strength and Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, the SMP stub terminal connector offers exceptional conductivity, durability, and corrosion resistance. Fully REACH and RoHS compliant, it provides reliable operation between −55 °C and +165 °C.

Applications and Integration

The limited detent design ensures secure yet serviceable mating within stub terminal RF assemblies used in defense electronics, RF transceivers, and test systems where ease of connection is key.

Tailored SMP Interface Options

Mechanc manufactures SMP RF connectors with varying detent forces and mounting styles to meet specific system requirements. Visit our RF Connector Catalog for compatible precision components.
