Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

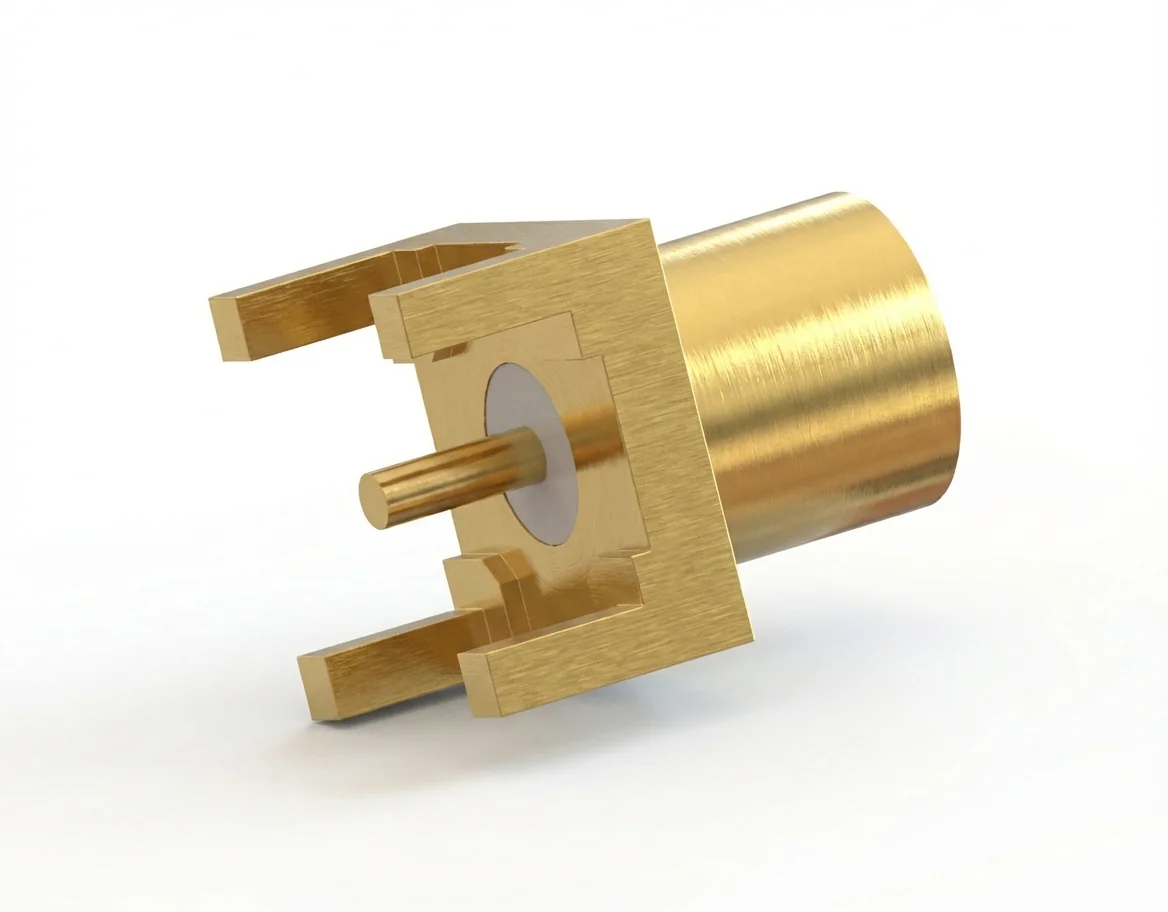

The SMP male smooth bore PCB coaxial connector – thru-hole, square body, solder configuration – offers reliable broadband performance for compact printed circuit board assemblies. Supporting 50 Ω impedance and operating from DC to 40 GHz, this SMP connector ensures low-loss, high-density signal transitions between board-mounted modules and microwave circuits.
With VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the SMP male smooth bore connector maintains high return-loss control and signal integrity across the full frequency range. The smooth bore interface enables quick, repeatable engagement for modular testing environments.
Precision-machined from stainless steel and equipped with gold-plated beryllium copper contacts, the SMP PCB connector delivers reliable conductivity and mechanical strength. Fully REACH and RoHS compliant, it performs consistently across −55 °C to +165 °C in both laboratory and industrial environments.
The thru-hole, square-body structure supports integration into PCB mount RF connectors used in modular microwave assemblies, radar electronics, and instrumentation test boards.
Mechanc offers specialized SMP connectors in smooth, limited, and full detent configurations for different engagement needs. Explore our RF Connector Catalog for matching PCB-mount and coaxial variants.
