SMP Male Smooth Bore RF Connector – Stub Terminal, 2.5mm Pin Diameter, Thread-In, Solder

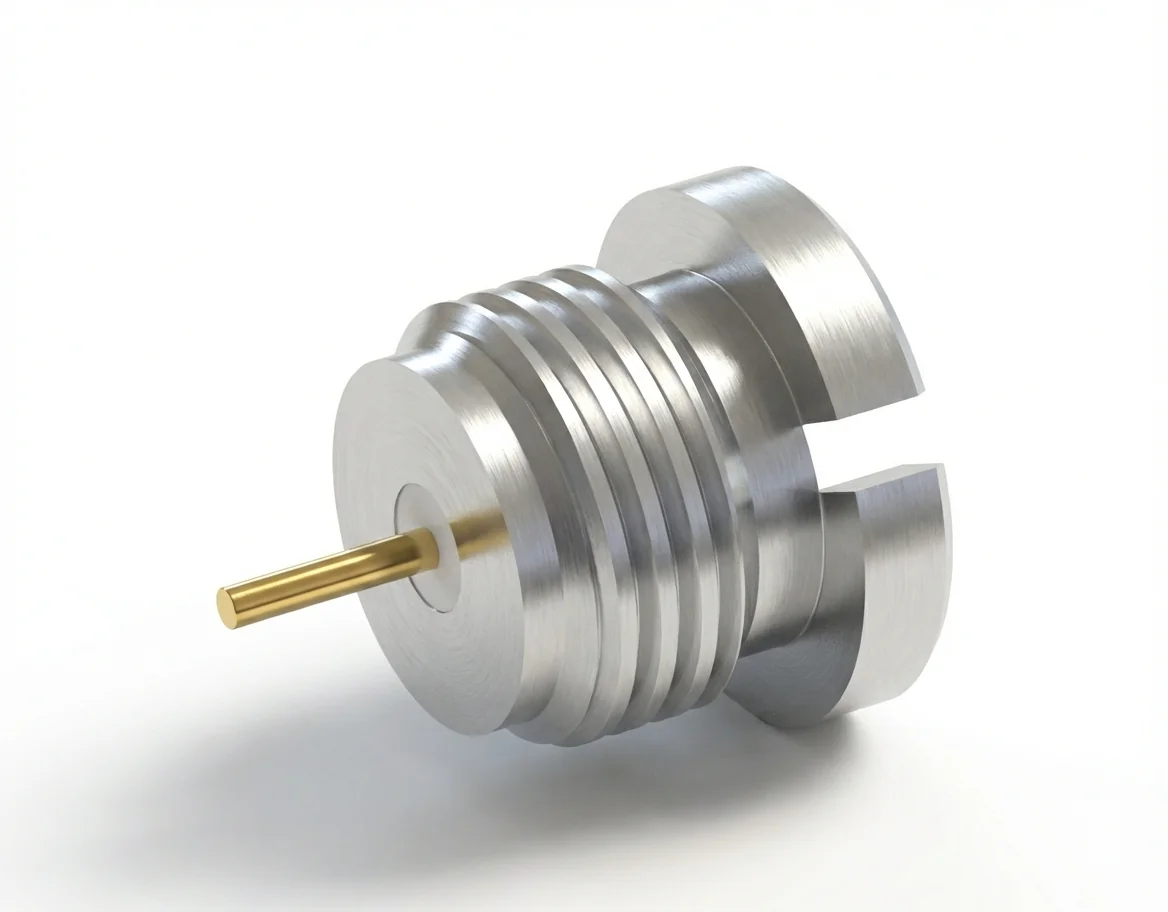

SMP Male Limited Detent RF Connector – Stub Terminal, 2.5mm Pin Diameter, Thread-In, Solder, Model SMP-JYD2-L

The SMP male limited detent RF connector – stub terminal, thread-in, solder type – combines mechanical control with precision high-frequency performance. Operating from DC to 40 GHz with 50 Ω impedance, this SMP connector provides secure yet easily detachable connections for modular and repairable RF systems.

High-Precision Electrical Control

Featuring VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the SMP male limited detent connector ensures low reflection and reliable impedance matching in multi-channel test and measurement setups.

Robust Construction and Compliance

Made from corrosion-resistant stainless steel with gold-plated beryllium copper contacts, the SMP stub terminal connector delivers long-lasting durability and excellent conductivity. Fully REACH and RoHS compliant, it performs reliably under extreme environmental conditions from −55 °C to +165 °C.

Applications and Mounting Integration

The limited detent design provides controlled retention in stub terminal RF assemblies for RF switches, microwave analyzers, and compact radar front ends.

Custom SMP Connector Variants

Mechanc’s range of SMP connectors includes smooth, limited, and full detent interfaces for different mechanical engagement requirements. Visit the RF Connector Catalog for matching designs and technical details.
