| Quantity | Price |
| 1 - 99 | 23,00 $ |
| 100 - 199 | 22,54 $ |
| 200 - 499 | 22,31 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

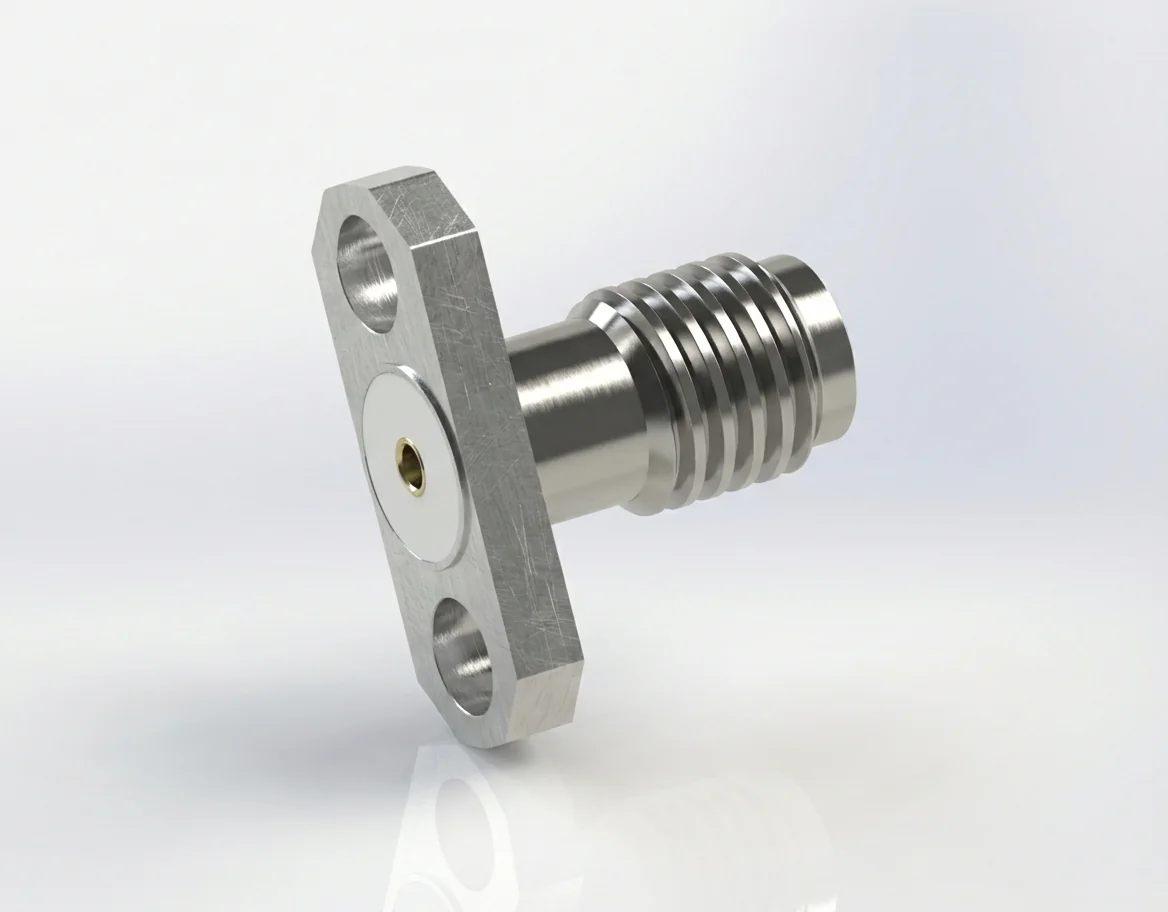

The SSMA female 2-hole flange mount RF connector with a 0.9 mm pin and 8.3 mm hole spacing provides robust mechanical coupling and high-power stability in compact RF systems. Designed for 50 Ω operation up to 36 GHz, this field-replaceable connector ensures long-term precision and reliability in test and measurement applications.
Achieving VSWR ≤ 1.25 and insertion loss ≤ 0.06 √F(GHz) dB, the SSMA female connector supports efficient signal transfer with minimal return loss, maintaining stability across extended use in power-sensitive systems.
Constructed from stainless steel and gold-plated beryllium copper contacts, the SSMA female flange connector provides superior conductivity, corrosion resistance, and mechanical strength. It is fully REACH and RoHS compliant and operates dependably from −55 °C to +165 °C.
The 8.3 mm flange configuration supports integration within 2-hole flange mount assemblies used in amplifier modules, RF analyzers, and vector measurement instruments.
Mechanc manufactures advanced SSMA RF connectors with customizable pin geometries, flange dimensions, and materials. Discover the complete product range in our RF Connector Catalog.
