2.92mm Female 4-Hole Flange Mount RF Connector – Solder Attachment, 8.64mm Hole Spacing, 1.27mm Pin Diameter, Stub Terminal

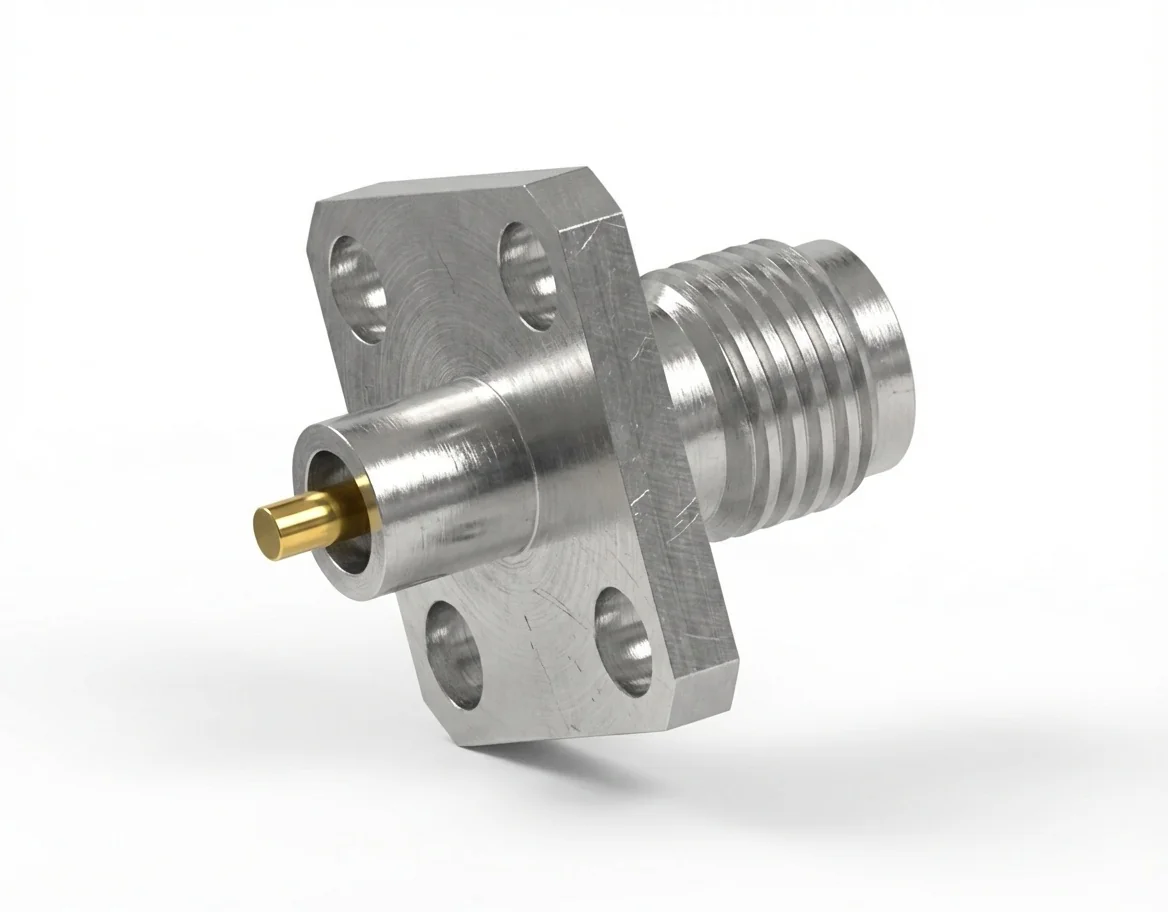

2.92mm Female 4-Hole Flange Mount RF Connector – Solder Attachment, Stub Terminal – Model 2.92-KFD31

The 2.92 mm female 4-hole flange mount RF connector with a 1.27 mm pin and solder attachment termination provides a durable and secure interface for precision RF assemblies. Featuring an 8.64 mm hole spacing and stub terminal design, this connector ensures stable signal transfer and reliable grounding for high-frequency circuits operating up to 40 GHz.

High-Frequency Stability and Low Loss

Engineered for 50 Ω impedance systems, the 2.92 mm female 4-hole flange mount RF connector achieves VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB. Its solder-terminated stub design minimizes signal reflection and improves return loss in high-precision measurement applications.

Rugged Design and Material Composition

Constructed from corrosion-resistant stainless steel and gold-plated beryllium copper, the 2.92 mm female flange connector ensures excellent conductivity and long-term durability. It is fully REACH and RoHS compliant and performs reliably in the −55 °C to +165 °C operating range.

Applications in RF and Microwave Systems

The solder attachment design and 8.64 mm flange spacing make this connector ideal for custom microwave boards, signal analyzers, and 4-hole flange mount RF modules that require compact and stable soldered terminations.

Integration and Custom Solutions

Mechanc offers a full line of 2.92 mm RF connectors including solder, clamp, and crimp termination options. Visit our RF Connector Catalog to explore compatible precision connectors and accessories for laboratory and industrial RF applications.
