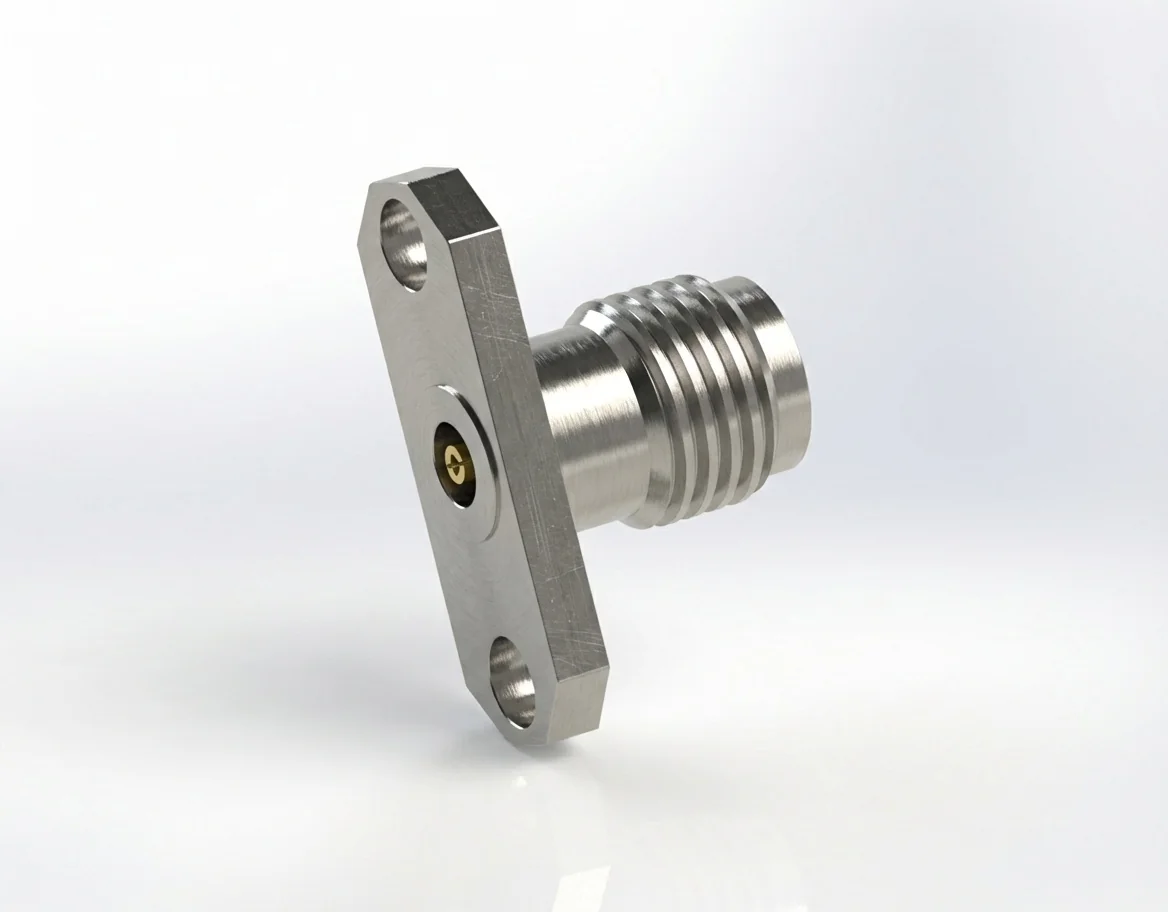

3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.46mm Pin Diameter
Part No.
3.5-KFD22
Also:
1.0mm Male
In Stock
Lead time: 3–5 days (standard) · Custom: on request
3.5mmFemaleStraight2 Hole Flange
Quantity
Electrical & Mechanical Specifications
| Part Number | 3.5-KFD22 |
|---|---|
| Series | 3.5mm |
| Gender | Female |
| Body Style | Straight |
| Mount Method | 2 Hole Flange |
| Attachment Method | Field Replaceable |
| Termination Type | Field Replaceable |
| Frequency Max | 26.5 GHz |
| Impedance | 50 Ω |
| Max Operating Temperature | +165°C |
| Connector 1 | 1.0mm Male |
| Connector 2 | 1.0mm Male |
Product Description
3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD22
The 3.5 mm female 2-hole flange mount RF connector with a 0.46 mm pin and 12.22 mm hole spacing provides durable mechanical design and outstanding broadband accuracy. Its field-replaceable interface allows convenient maintenance while ensuring reliable electrical performance to 26.5 GHz.
High-Precision RF Performance
With 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector maintains phase stability and low reflection across broadband applications.
Construction and Material Reliability
Manufactured from stainless steel with gold-plated beryllium copper contacts, the connector is both rugged and fully REACH and RoHS compliant.
Compact Integration in RF Systems
Ideal for 2-hole flange mount enclosures and modular test devices where precise alignment and repeatability are critical.
Mirror Male Connector
Pair with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD22. Discover our full 3.5 mm connector series inside the RF Connector Catalog.
