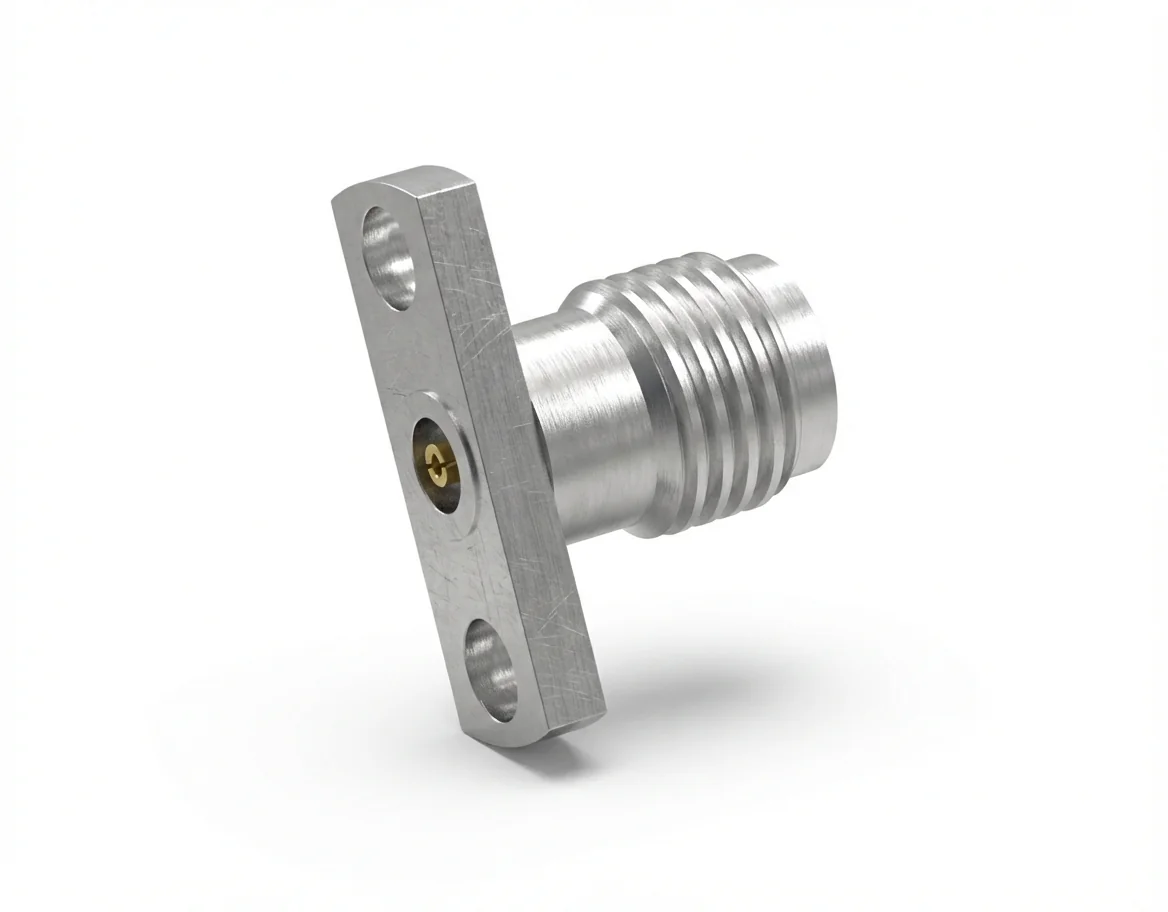

3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.46mm Pin Diameter
Part No.
3.5-KFD28
Also:
1.0mm Male
In Stock
Lead time: 3–5 days (standard) · Custom: on request
3.5mmFemaleStraight2 Hole Flange
Quantity
Electrical & Mechanical Specifications
| Part Number | 3.5-KFD28 |
|---|---|
| Series | 3.5mm |
| Gender | Female |
| Body Style | Straight |
| Mount Method | 2 Hole Flange |
| Attachment Method | Field Replaceable |
| Termination Type | Field Replaceable |
| Frequency Max | 26.5 GHz |
| Impedance | 50 Ω |
| Max Operating Temperature | +165°C |
| Connector 1 | 1.0mm Male |
| Connector 2 | 1.0mm Male |
Product Description
3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD28
The 3.5 mm female 2-hole flange mount RF connector with a 0.46 mm pin and 10.2 mm spacing combines high-frequency precision with compact, rugged design. Its field-replaceable structure allows for efficient connector replacement while maintaining consistent impedance performance.
Outstanding Electrical Characteristics
With 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector ensures stable signal integrity and broadband reliability up to 26.5 GHz.
Materials and Compliance
Made from stainless steel with gold-plated beryllium copper contacts, it provides strong mechanical endurance and full REACH and RoHS compliance.
Precision Mounting Applications
Ideal for 2-hole flange mount modules and microwave analyzers that require low intermodulation and secure grounding.
Complementary Male Connector
Use with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD28. Browse the 3.5 mm connector series in our RF Connector Catalog.
