3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.51mm Pin Diameter
Part No.
3.5-KFD23
Also:
1.0mm Male
In Stock
Lead time: 3–5 days (standard) · Custom: on request
3.5mmFemaleStraight2 Hole Flange
Quantity
Electrical & Mechanical Specifications
| Part Number | 3.5-KFD23 |
|---|---|
| Series | 3.5mm |
| Gender | Female |
| Body Style | Straight |
| Mount Method | 2 Hole Flange |
| Attachment Method | Field Replaceable |
| Termination Type | Field Replaceable |
| Frequency Max | 26.5 GHz |
| Impedance | 50 Ω |
| Max Operating Temperature | +165°C |
| Connector 1 | 1.0mm Male |
| Connector 2 | 1.0mm Male |
Product Description

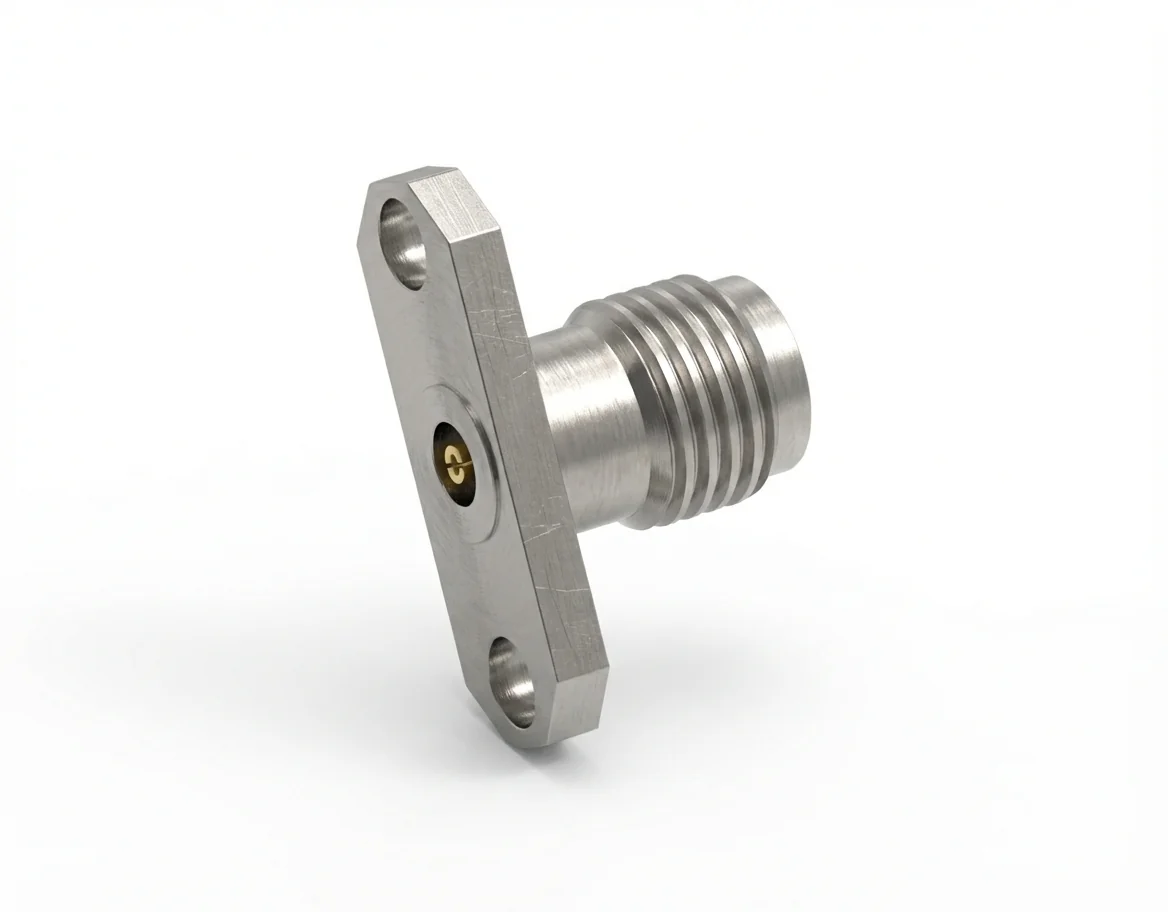

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD23
The 3.5 mm female 2-hole flange mount RF connector with a 0.51 mm pin and 12.22 mm spacing is engineered for consistent signal performance and rugged mechanical support. This field-replaceable connector simplifies maintenance while preserving precision alignment in laboratory assemblies.
Accurate Electrical Parameters
At 50 Ω impedance and VSWR ≤ 1.1 with insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector supports clean signal transmission and low reflection through 26.5 GHz.
Material Quality and Compliance
Constructed from stainless steel and gold-plated beryllium copper, the connector offers excellent durability and full REACH and RoHS compliance.
System Integration and Applications
Ideal for 2-hole flange mount modules, portable testing equipment, and network analyzers requiring compact form factors.
Complementary Male Connector
Use alongside the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD23. Browse the 3.5 mm connector range in our RF Connector Catalog.
