3.5mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.3mm Pin Diameter
Part No.
3.5-JFD32
Also:
1.0mm Male
In Stock
Lead time: 3–5 days (standard) · Custom: on request
3.5mmMaleStraight2 Hole Flange
Quantity
Electrical & Mechanical Specifications
| Part Number | 3.5-JFD32 |
|---|---|
| Series | 3.5mm |
| Gender | Male |
| Body Style | Straight |
| Mount Method | 2 Hole Flange |
| Attachment Method | Field Replaceable |
| Termination Type | Field Replaceable |
| Frequency Max | 26.5 GHz |
| Impedance | 50 Ω |
| Max Operating Temperature | +165°C |
| Connector 1 | 1.0mm Male |
| Connector 2 | 1.0mm Male |
Product Description

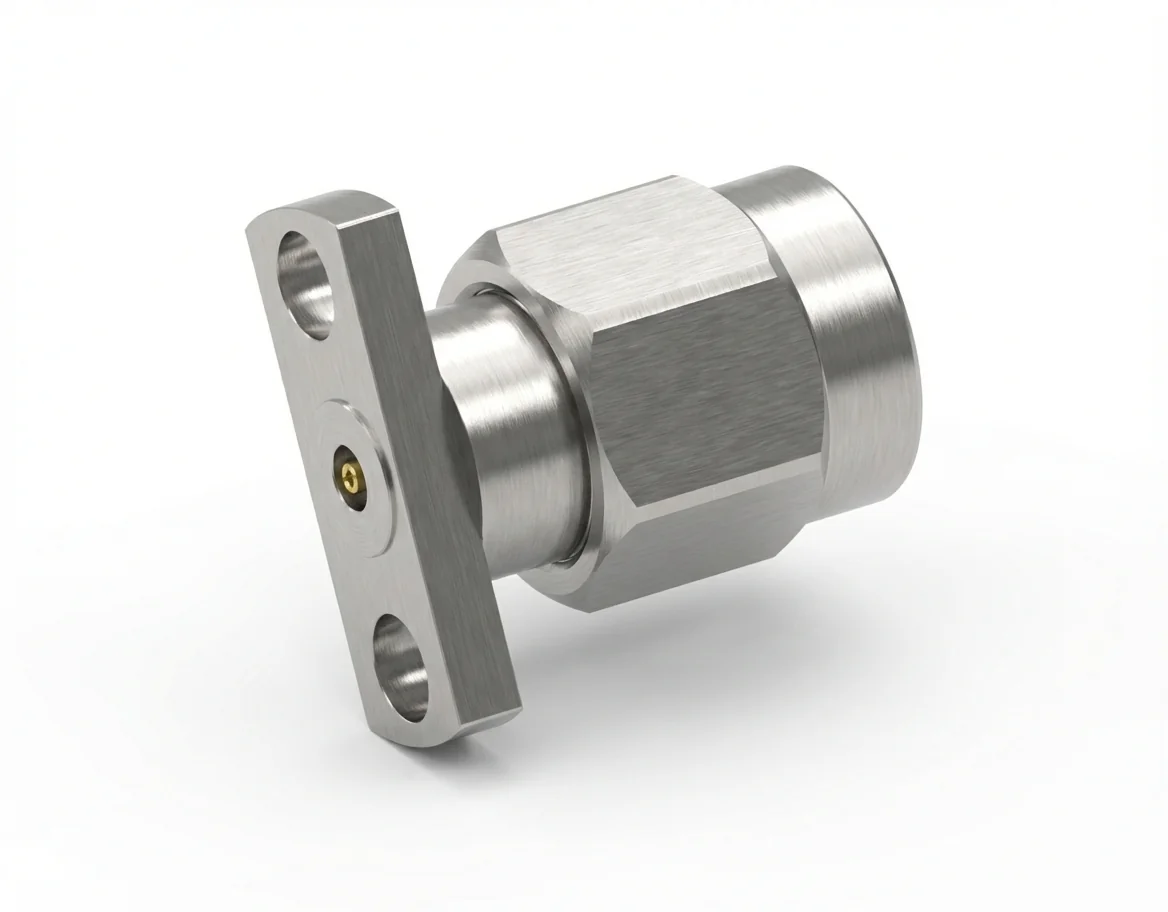

3.5mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD32
The 3.5 mm male 2-hole flange mount RF connector with a 0.3 mm pin and 12.7 mm hole spacing delivers precise electrical and mechanical performance for RF analyzers and measurement equipment. Its field-replaceable assembly offers reliable maintenance and alignment during repeated calibration operations.
Frequency Response and Electrical Balance
Featuring 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5-JFD32 connector ensures consistent signal integrity and low reflection up to 26.5 GHz. Its precision interface supports broadband test instrumentation. Browse similar products in our 3.5 mm connector series.
Material Design and Global Standards
Built from passivated stainless steel with gold-plated beryllium copper contacts, the connector guarantees corrosion resistance and long-term conductivity. Each model is REACH and RoHS compliant, meeting international manufacturing standards. Check our flange-mount connector catalog for related assemblies.
Mechanical Integration and Panel Fit
The 2-hole flange mount layout with 12.7 mm spacing ensures robust installation and secure mechanical stability on RF panels and precision enclosures. This design supports repeated re-mating in demanding environments. Explore the RF connector catalog for more compatible components.
Female Mirror Connector
Combine with the 3.5 mm female 2-hole flange mount RF connector – Model 3.5-KFD32 to ensure phase-matched connections and reliable broadband measurement consistency.
