3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.23mm Pin Diameter
Part No.
3.5-JFD1
Also:
1.0mm Male
In Stock
Lead time: 3–5 days (standard) · Custom: on request
3.5mmMaleStraight4 Hole Flange
Quantity
Electrical & Mechanical Specifications
| Part Number | 3.5-JFD1 |
|---|---|
| Series | 3.5mm |
| Gender | Male |
| Body Style | Straight |
| Mount Method | 4 Hole Flange |
| Attachment Method | Field Replaceable |
| Termination Type | Field Replaceable |
| Frequency Max | 26.5 GHz |
| Impedance | 50 Ω |
| Max Operating Temperature | +165°C |
| Connector 1 | 1.0mm Male |
| Connector 2 | 1.0mm Male |
Product Description

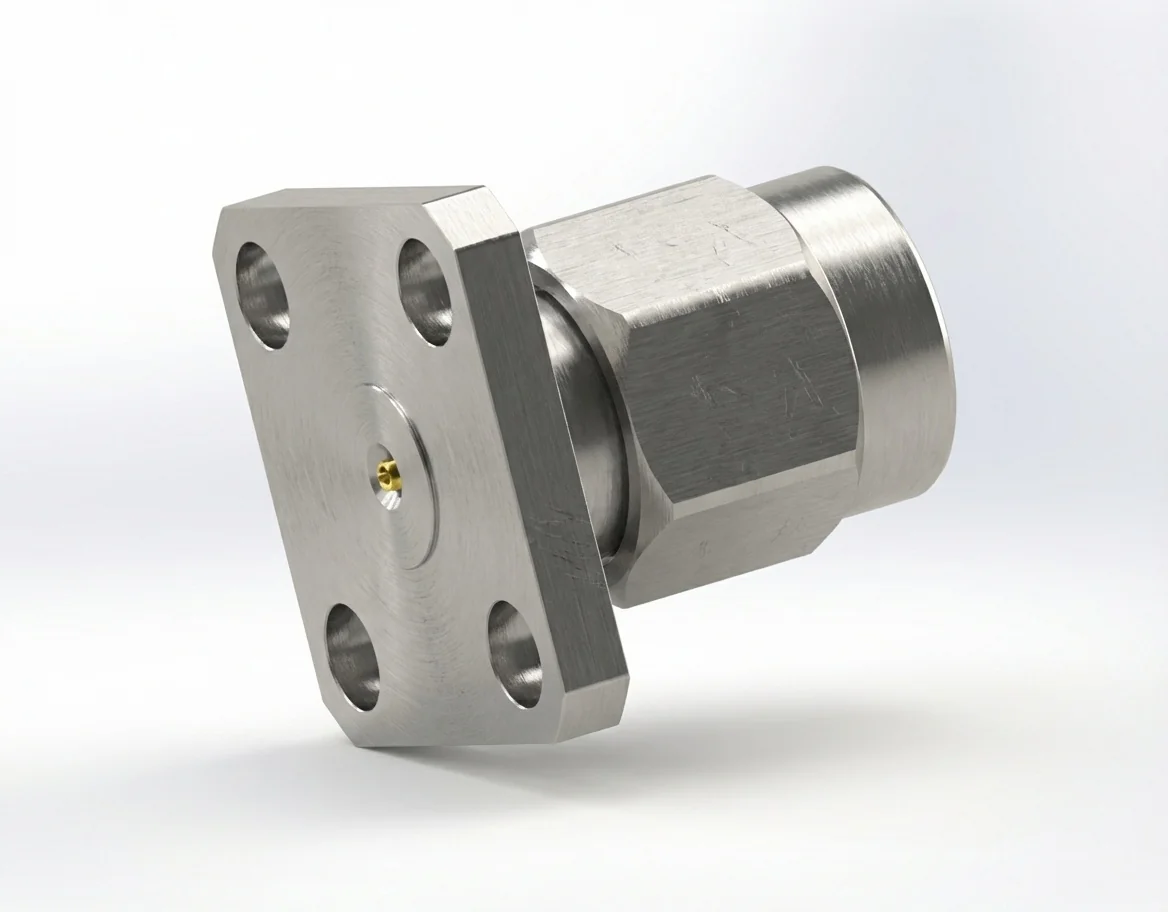

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD1
The 3.5 mm male 4-hole flange mount RF connector with a 0.23 mm pin and 8.64 mm hole spacing ensures outstanding precision and repeatability for broadband applications up to 26.5 GHz. Its field-replaceable design allows fast maintenance while maintaining high electrical accuracy.
Reliable Electrical Performance
Operating at 50 Ω impedance, with VSWR ≤ 1.1 and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm male connector delivers stable, low-loss performance across the full frequency band.
Material and Compliance
Made from stainless steel and gold-plated beryllium copper contacts, the connector offers exceptional durability and fully meets REACH and RoHS standards.
Mechanical Integration and Mounting
Engineered for 4-hole flange mount assemblies, it provides robust alignment and grounding for measurement and test systems requiring maximum stability.
Mirror Female Connector
Pair with the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD1. See the full 3.5 mm RF connector series within our RF Connector Catalog.
