3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.38mm Pin Diameter
Part No.
3.5-JFD3
Also:
1.0mm Male
In Stock
Lead time: 3–5 days (standard) · Custom: on request
3.5mmMaleStraight4 Hole Flange
Quantity
Electrical & Mechanical Specifications
| Part Number | 3.5-JFD3 |
|---|---|
| Series | 3.5mm |
| Gender | Male |
| Body Style | Straight |
| Mount Method | 4 Hole Flange |
| Attachment Method | Field Replaceable |
| Termination Type | Field Replaceable |
| Frequency Max | 26.5 GHz |
| Impedance | 50 Ω |
| Max Operating Temperature | +165°C |
| Connector 1 | 1.0mm Male |
| Connector 2 | 1.0mm Male |
Product Description

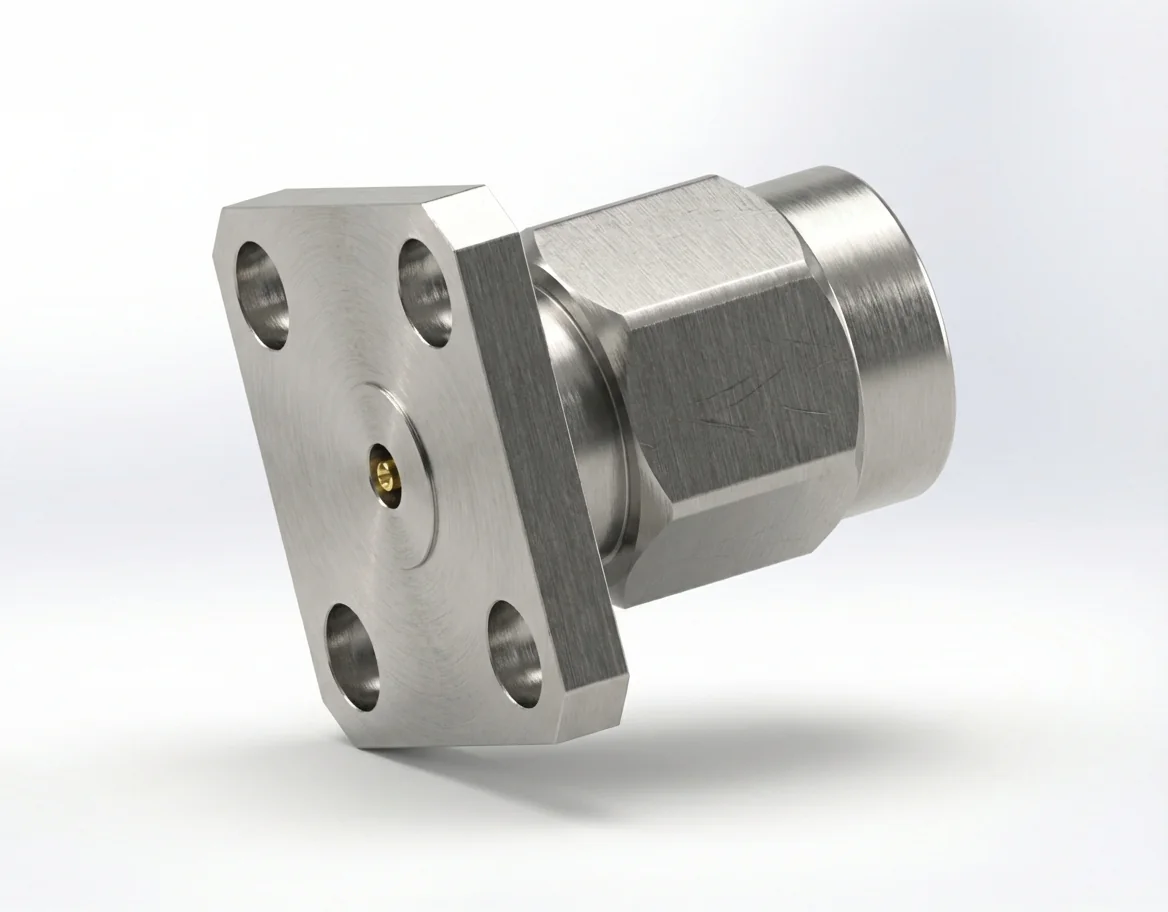

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD3
The 3.5 mm male 4-hole flange mount RF connector with a 0.38 mm pin and 8.64 mm spacing delivers precise electrical performance for high-density RF modules. This field-replaceable design provides easy replacement without sacrificing mechanical accuracy or broadband stability through 26.5 GHz.
Electrical Specifications and Accuracy
Rated at 50 Ω impedance, with VSWR ≤ 1.1 and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm male connector minimizes reflection and ensures low-loss operation.
Build Quality and Compliance
Made from stainless steel and gold-plated beryllium copper contacts for maximum durability and compliance with REACH and RoHS directives.
Integration and Applications
Perfect for 4-hole flange mount RF test assemblies and precision measurement setups that demand repeatable interface performance.
Mirror Female Connector
Compatible with the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD3. Browse our 3.5 mm RF connector collection inside the RF Connector Catalog.
