3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.46mm Pin Diameter
Part No.
3.5-JFD4
Also:
1.0mm Male
In Stock
Lead time: 3–5 days (standard) · Custom: on request
3.5mmMaleStraight4 Hole Flange
Quantity
Electrical & Mechanical Specifications
| Part Number | 3.5-JFD4 |
|---|---|
| Series | 3.5mm |
| Gender | Male |
| Body Style | Straight |
| Mount Method | 4 Hole Flange |
| Attachment Method | Field Replaceable |
| Termination Type | Field Replaceable |
| Frequency Max | 26.5 GHz |
| Impedance | 50 Ω |
| Max Operating Temperature | +165°C |
| Connector 1 | 1.0mm Male |
| Connector 2 | 1.0mm Male |
Product Description

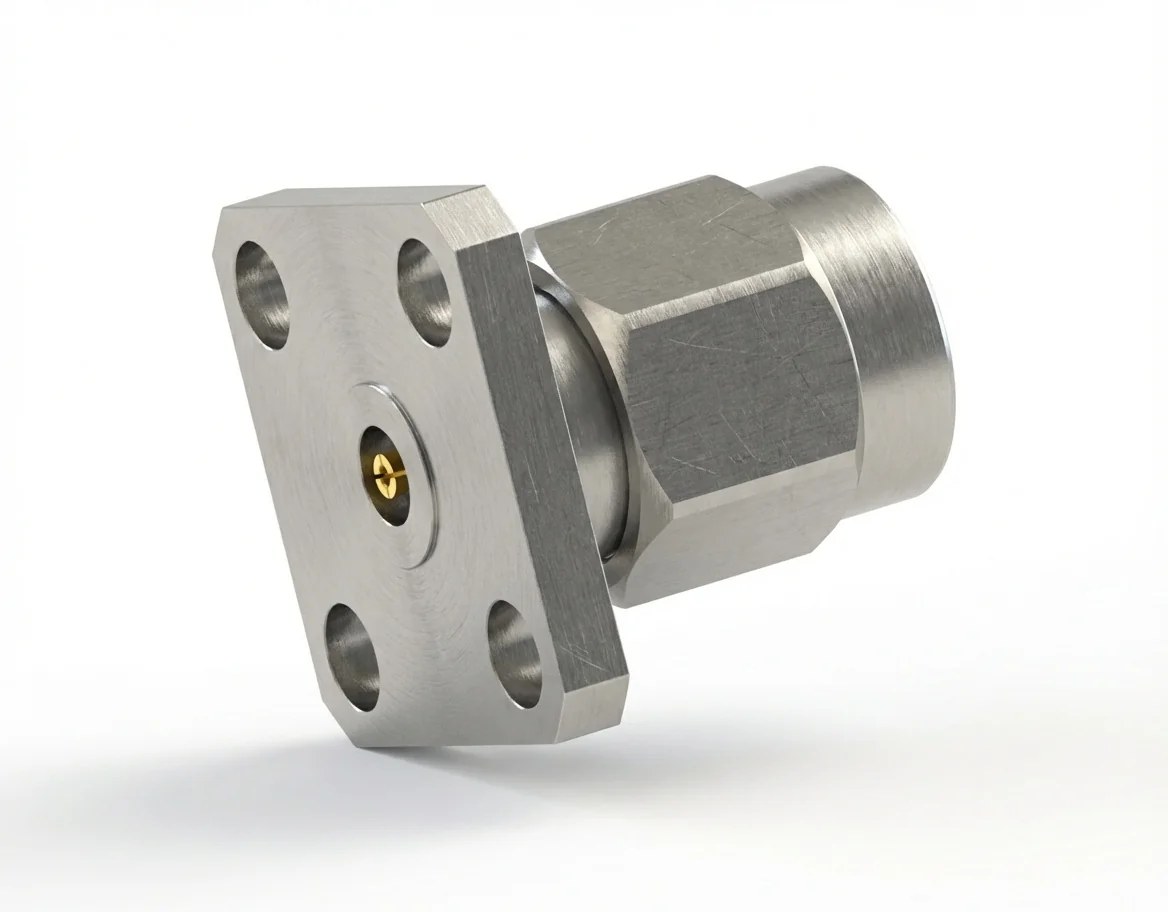

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD4
The 3.5 mm male 4-hole flange mount RF connector with a 0.46 mm pin and 8.64 mm hole spacing is engineered for broadband applications requiring reliable field replacement and high precision up to 26.5 GHz. Its field-replaceable mechanism offers fast maintenance and tight electrical repeatability.
Superior Electrical Control
With 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm male connector ensures low signal reflection and high return-loss consistency for RF testing.
Material Composition and Compliance
Built from stainless steel and gold-plated beryllium copper, it provides long-term durability and complies with REACH and RoHS environmental standards.
Mechanical Integration
Optimized for 4-hole flange mount installations in calibration tools and test analyzers requiring repeatable connections under mechanical stress.
Complementary Female Connector
Use with the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD4. See more in our 3.5 mm RF connector range within the RF Connector Catalog.
