SMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.38mm Pin Diameter
Part No.
SMA-KFD27
Also:
1.0mm Male
In Stock
Lead time: 3–5 days (standard) · Custom: on request
SMAFemaleStraight2 Hole Flange
Quantity
Electrical & Mechanical Specifications
| Part Number | SMA-KFD27 |
|---|---|
| Series | SMA |
| Gender | Female |
| Body Style | Straight |
| Mount Method | 2 Hole Flange |
| Attachment Method | Field Replaceable |
| Termination Type | Field Replaceable |
| Frequency Max | 18 GHz |
| Impedance | 50 Ω |
| Max Operating Temperature | +165°C |
| Connector 1 | 1.0mm Male |
| Connector 2 | 1.0mm Male |
Product Description

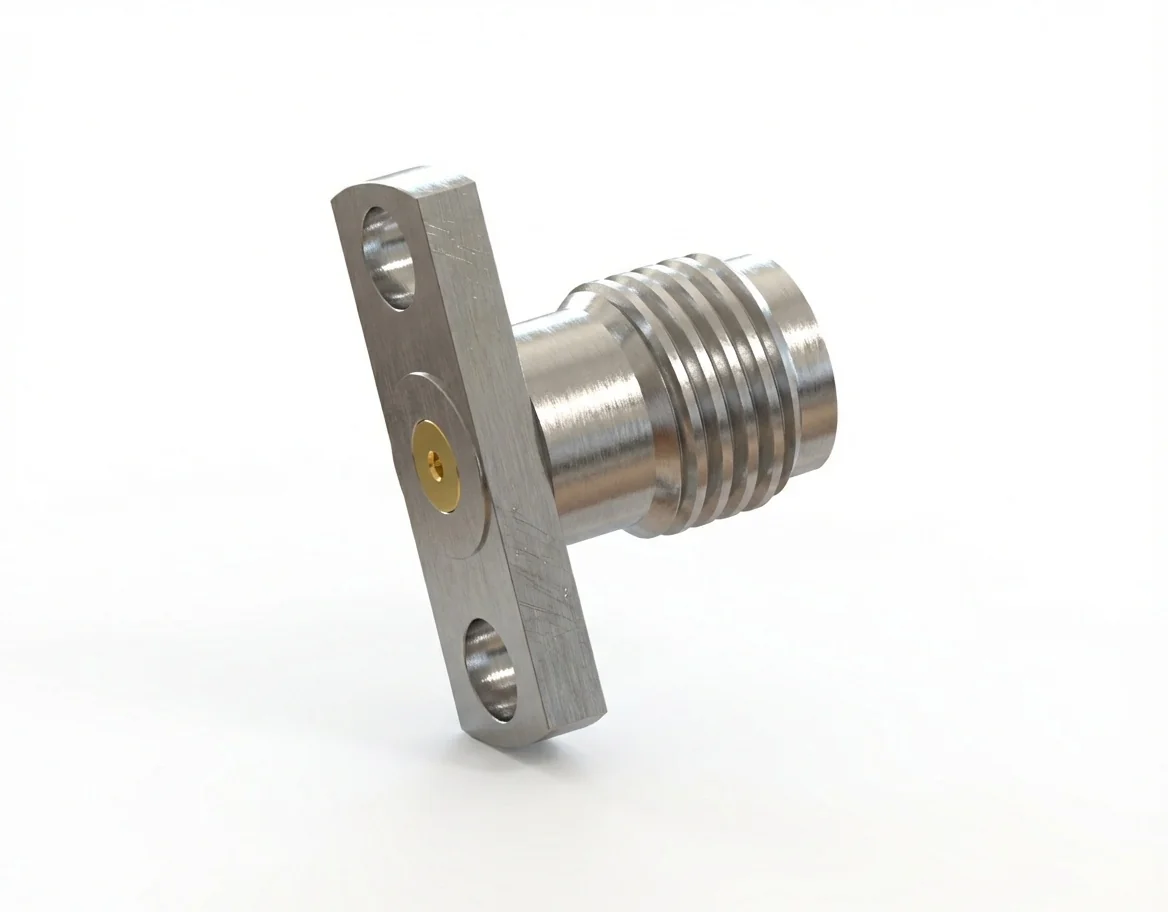

SMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-KFD27
The SMA female 2-hole flange mount RF connector with a 0.38 mm pin and 10.2 mm hole spacing offers high repeatability and excellent electrical stability for broadband calibration systems and RF test modules. Its field-replaceable configuration supports easy maintenance without sacrificing precision.
Electrical Parameters and Performance
Providing 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-KFD27 connector guarantees superior return-loss and signal consistency from DC to 18 GHz. It is designed for metrology-grade accuracy and phase stability. Explore our SMA connector range for related items.
Material Composition and Compliance
Built from stainless steel with gold-plated beryllium copper contacts, this connector ensures excellent corrosion resistance, conductivity, and mechanical endurance. Each unit complies fully with REACH and RoHS standards. Browse similar models within the flange-mount connector category.
Mechanical Integration and Compact Design
The 2-hole flange mount with 10.2 mm spacing provides secure installation and repeatable alignment in compact devices and portable analyzers. Its precision form factor supports high-density designs. Visit our RF connector catalog for other compatible SMA connectors.
Matching Male Connector
Pair with the SMA male 2-hole flange mount RF connector – Model SMA-JFD27 to achieve optimal broadband performance and impedance consistency in RF measurement setups.
